What size is a Gridfinity cell?

One cell is 42 mm square, about 1.65 inches. Every bin and baseplate is built on that grid, so everything lines up.

What magnets does Gridfinity use?

Gridfinity bins use 6 mm by 2 mm disc magnets, up to four per cell. We print magnet-ready bins with the holes built in. Most drawer setups skip magnets.

Does Gridfinity need magnets?

No. In a drawer, gravity and the baseplate lip hold every bin in place. Magnets only matter when a bin rides in a moving cart, case, or van.

Can I get bins with dividers?

Yes. The part builder makes bins with up to 4 slots each way, in any footprint up to 6 by 6 cells.

What if no stock bin fits my drawer?

Measure the drawer in the kit builder. We plan the baseplates and bins to fit it, and you check out once.

Can I buy Gridfinity bins already printed?

Yes. We print Gridfinity bins, baseplates, and full drawer kits to order in the USA and ship them to your door. You never need a printer.

Gridfinity bins, baseplates, and storage, printed to order

The drawer and desktop system everything snaps into.

Updated 2026-08-03

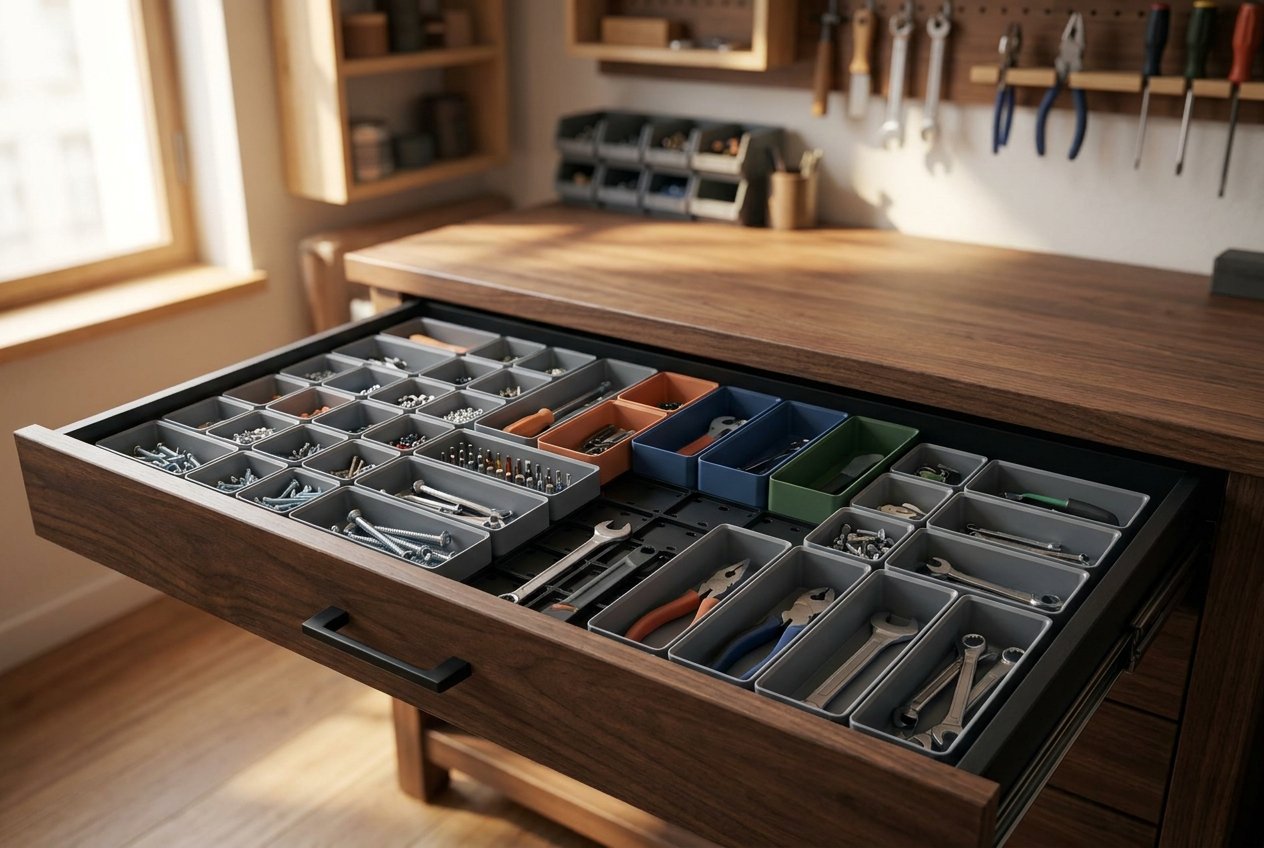

A walnut workbench drawer open to a Gridfinity grid of gray bins with orange, blue, and green accents holding screws and hand tools

Design your drawer kit Build a custom bin Trace a tool from a photo

Gridfinity turns a messy drawer into a place where every small thing has a home. Bins snap onto a base grid, and every bin fits every grid, always.

Start with one baseplate and a few bins. Add more as your drawer fills up. We print every piece to order, in the colors you pick.

What is Gridfinity?

Gridfinity is a storage system for drawers and desktops, created by Zack Freedman. Bins snap onto a base grid of 42 mm cells, and every bin fits every grid. 3D Prints Fast prints Gridfinity bins and baseplates to order in the USA, in the exact size you need.

Gridfinity was created by Zack Freedman. Visit the creator.

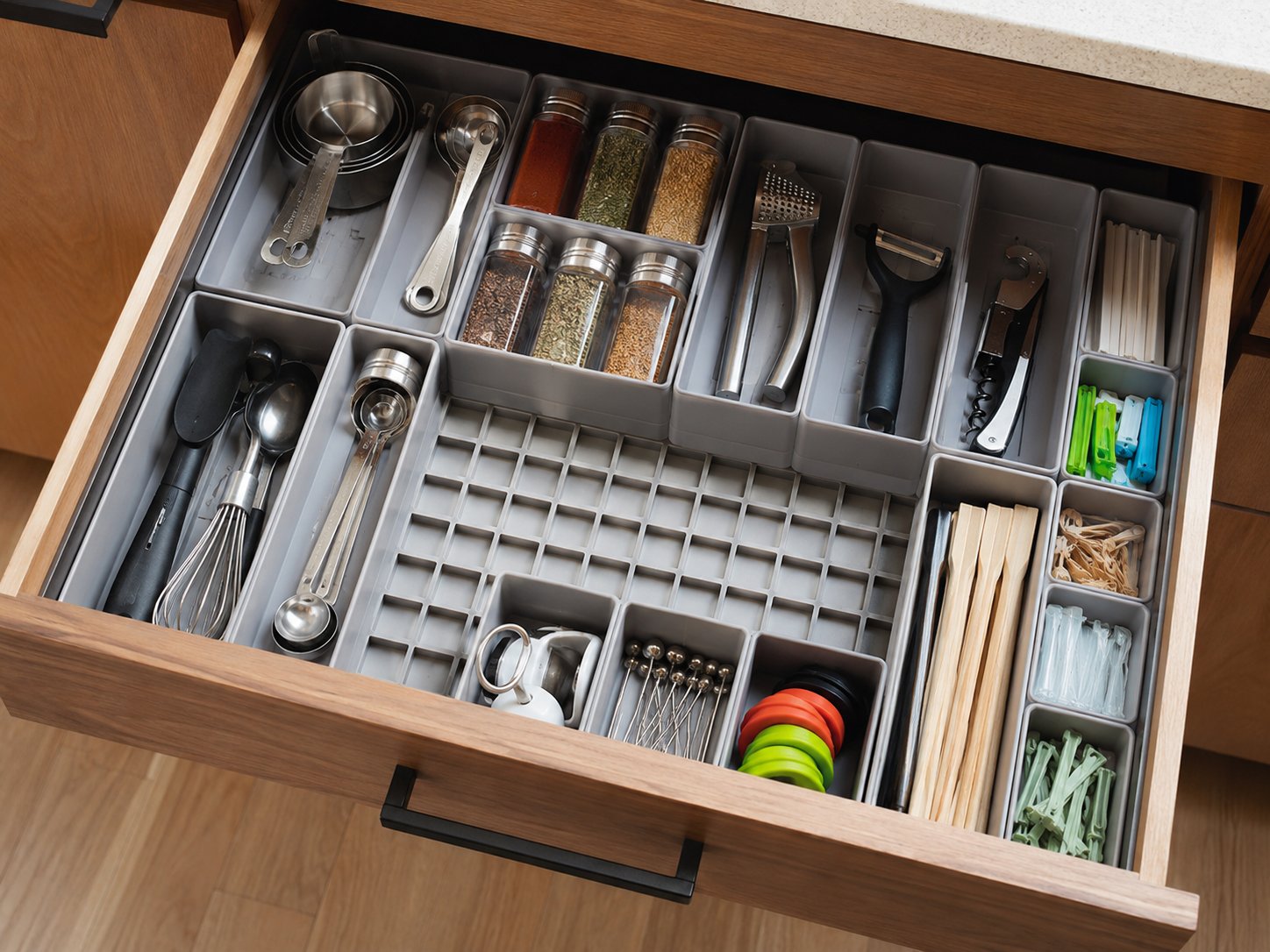

Gridfinity bins snapped onto a baseplate in a kitchen drawer, part of the grid still open

It works all over the house.

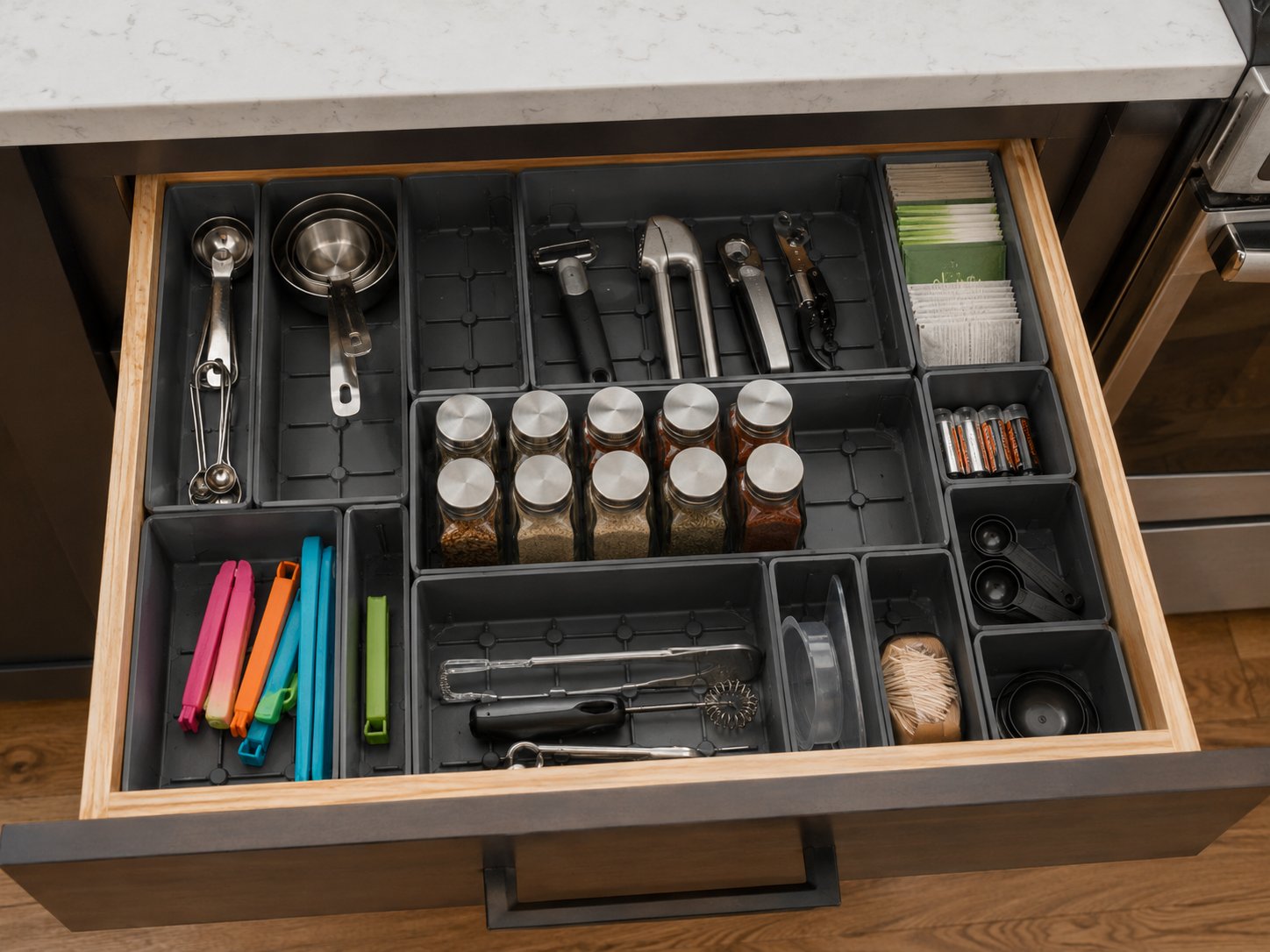

A kitchen drawer of Gridfinity bins holding spice jars, measuring cups, and tools

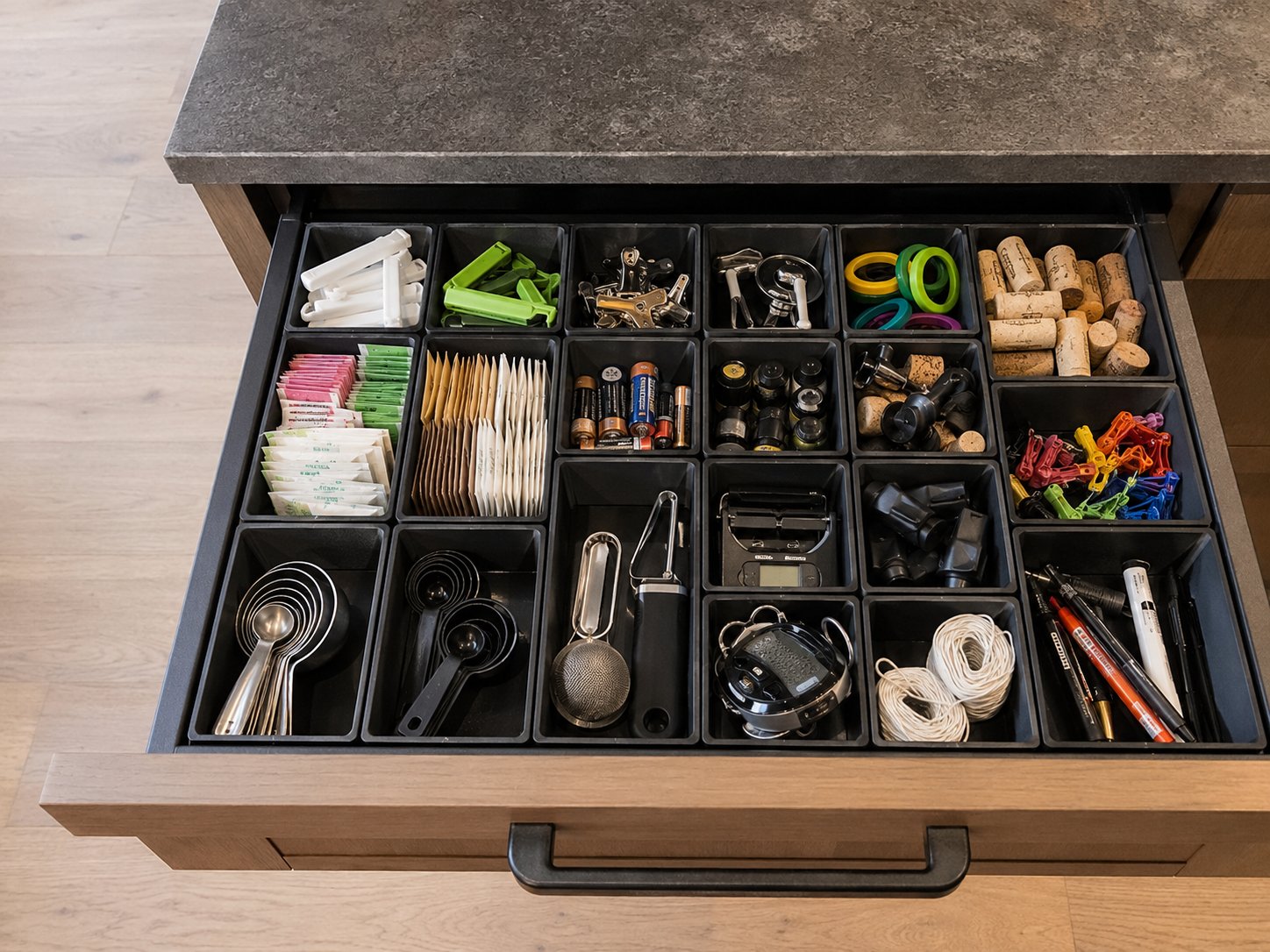

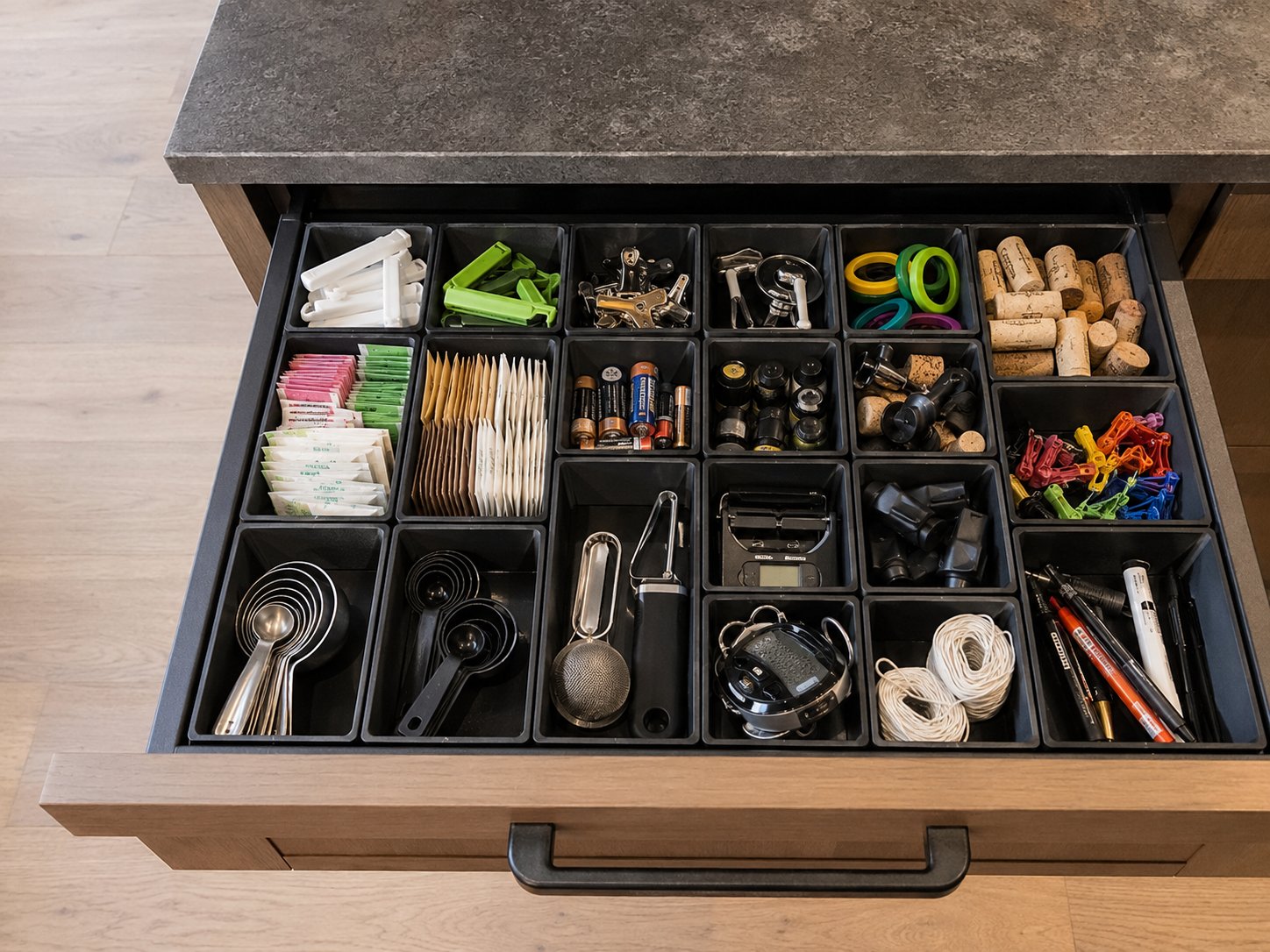

A junk drawer tamed by black Gridfinity bins: batteries, clips, corks, and string all in their place

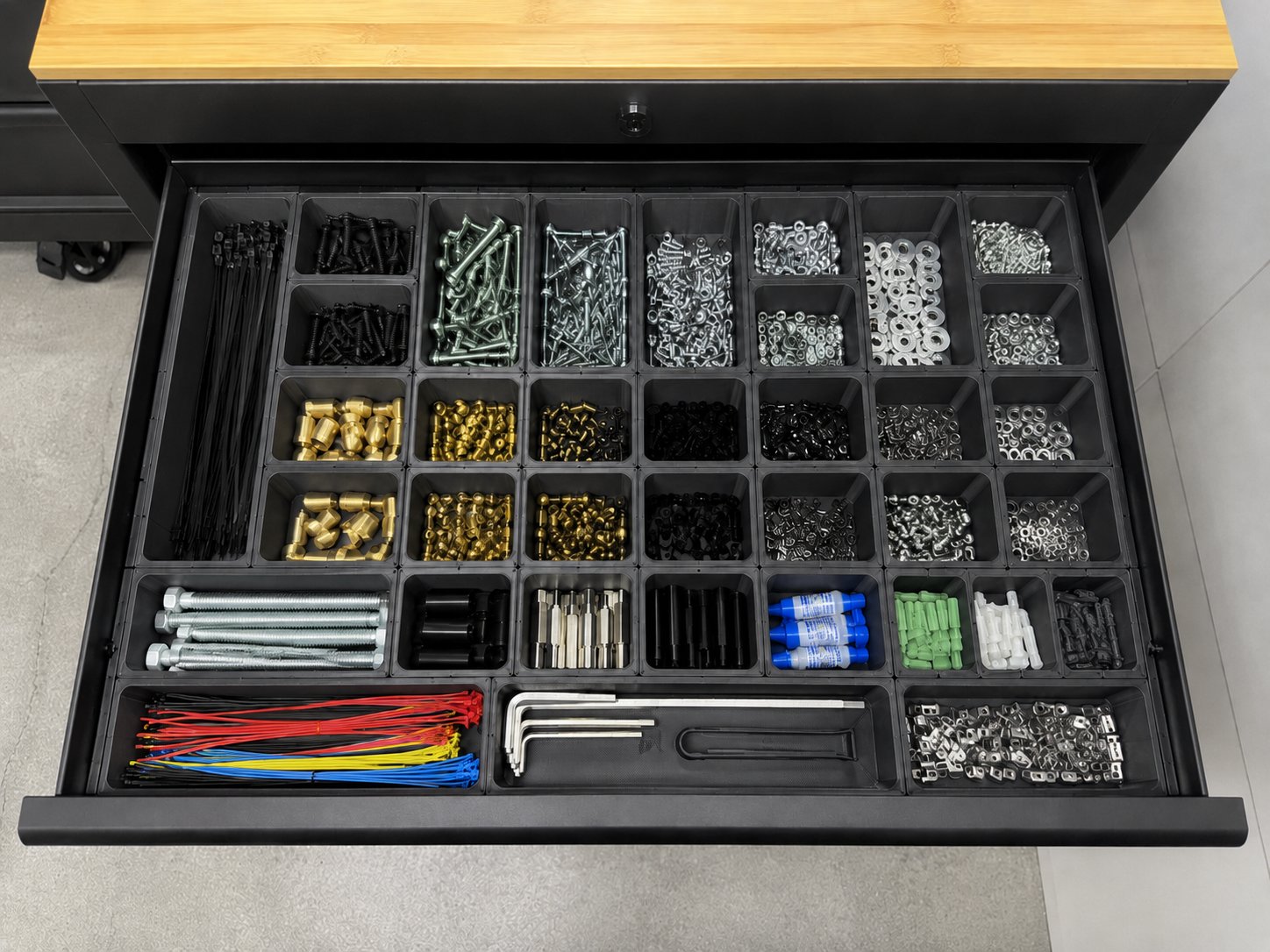

A workshop drawer of black Gridfinity bins sorting screws, washers, and brass fittings

A gray Gridfinity baseplate on a workbench holding a red screwdriver bin, a blue socket holder, an orange caliper holder, and a yellow nut driver tray

A black toolbox drawer lined with a gray Gridfinity grid, holding a yellow nut driver tray, a blue socket rail, and an orange bin of tape rolls

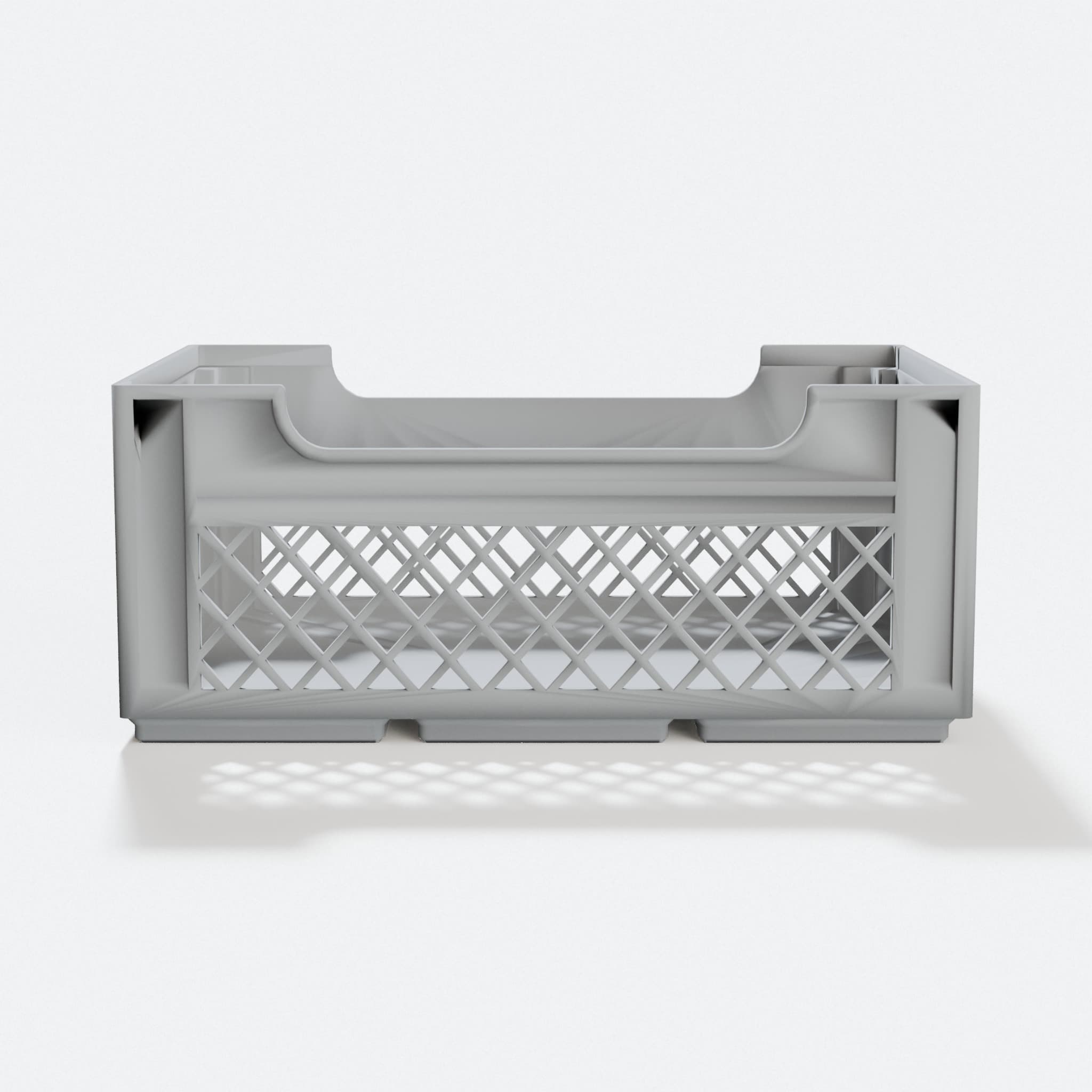

Gridfinity parts we print

Gridfinity or Multiboard?

Gridfinity organizes drawers and desks. Multiboard organizes walls. They do not compete, and many shops run both.

Feature	Gridfinity	Multiboard (Multibuild)
Best for	Drawers, desks, and small parts	Garage and shop walls
Mounts to	Sits flat in a drawer or on a desk	Screws to the wall
Grid size	42 mm squares	Holes 25 mm apart
License	Open (MIT), anyone can sell prints	Keep Making license controls sellers
Creator	Zack Freedman	Jonathan Kobylanski (Keep Making)

Read the full Multiboard vs Gridfinity comparison →

Gridfinity questions

What size is a Gridfinity cell?: One cell is 42 mm square, about 1.65 inches. Every bin and baseplate is built on that grid, so everything lines up.
What magnets does Gridfinity use?: Gridfinity bins use 6 mm by 2 mm disc magnets, up to four per cell. We print magnet-ready bins with the holes built in. Most drawer setups skip magnets.
Does Gridfinity need magnets?: No. In a drawer, gravity and the baseplate lip hold every bin in place. Magnets only matter when a bin rides in a moving cart, case, or van.
Can I get bins with dividers?: Yes. The part builder makes bins with up to 4 slots each way, in any footprint up to 6 by 6 cells.
What if no stock bin fits my drawer?: Measure the drawer in the kit builder. We plan the baseplates and bins to fit it, and you check out once.
Can I buy Gridfinity bins already printed?: Yes. We print Gridfinity bins, baseplates, and full drawer kits to order in the USA and ship them to your door. You never need a printer.

The Gridfinity guide

How does Gridfinity work?

Gridfinity works with two parts. A flat baseplate covered in 42 mm squares lines your drawer. Bins drop onto those squares and a small lip keeps them from sliding.

You do not need to buy the whole drawer at once. Add a few bins, use them for a week, then add more where you need them. Because every bin fits every grid, nothing you buy later ever goes to waste.

Pick a baseplate that fits your drawer, or let our kit builder plan it for you.
Add bins for the things you reach for most.
Fill the gaps over time. Old bins still fit the new layout.

A gray Gridfinity baseplate with red, orange, green, blue, and yellow bins snapped into it, several grid cells still empty

Gridfinity bins in any size

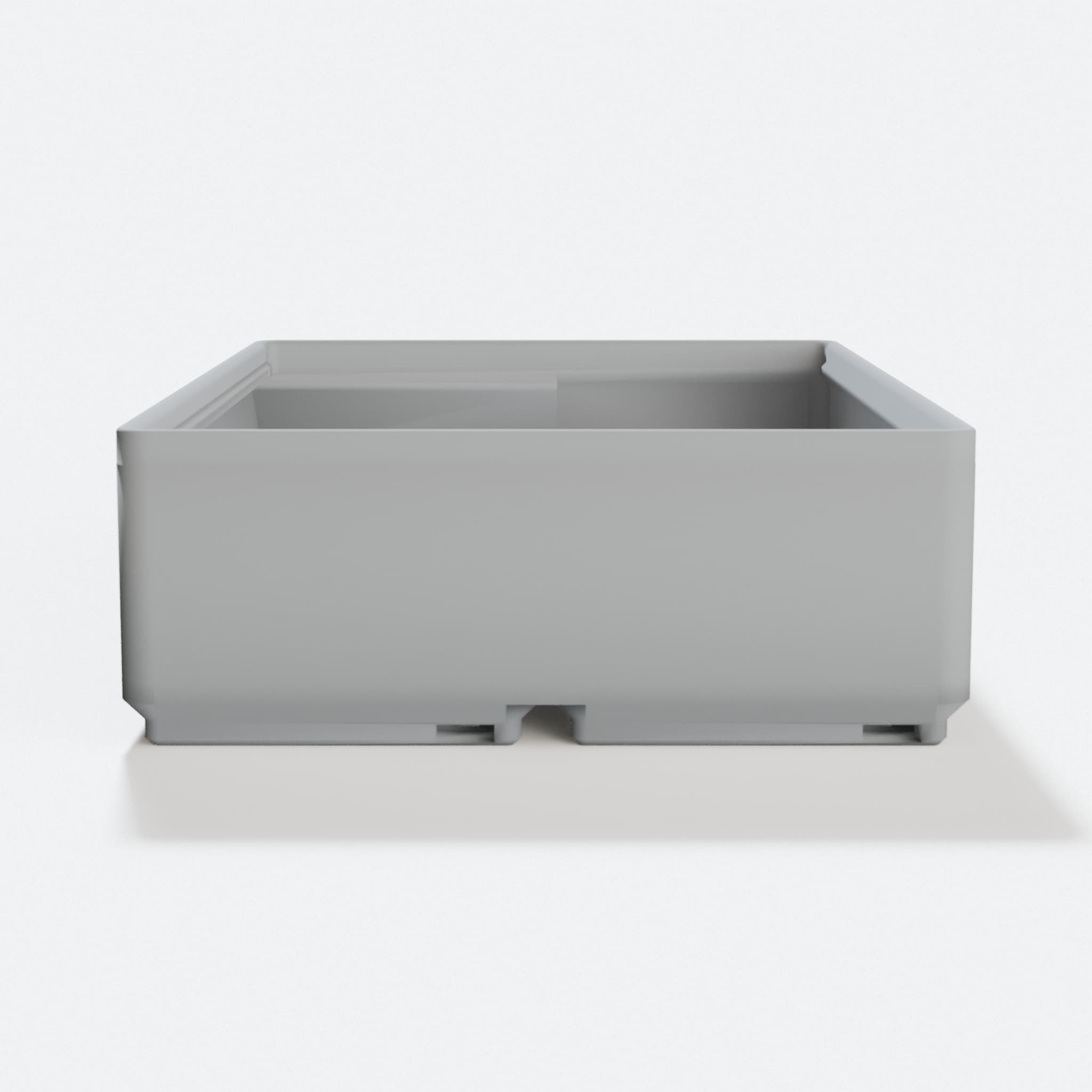

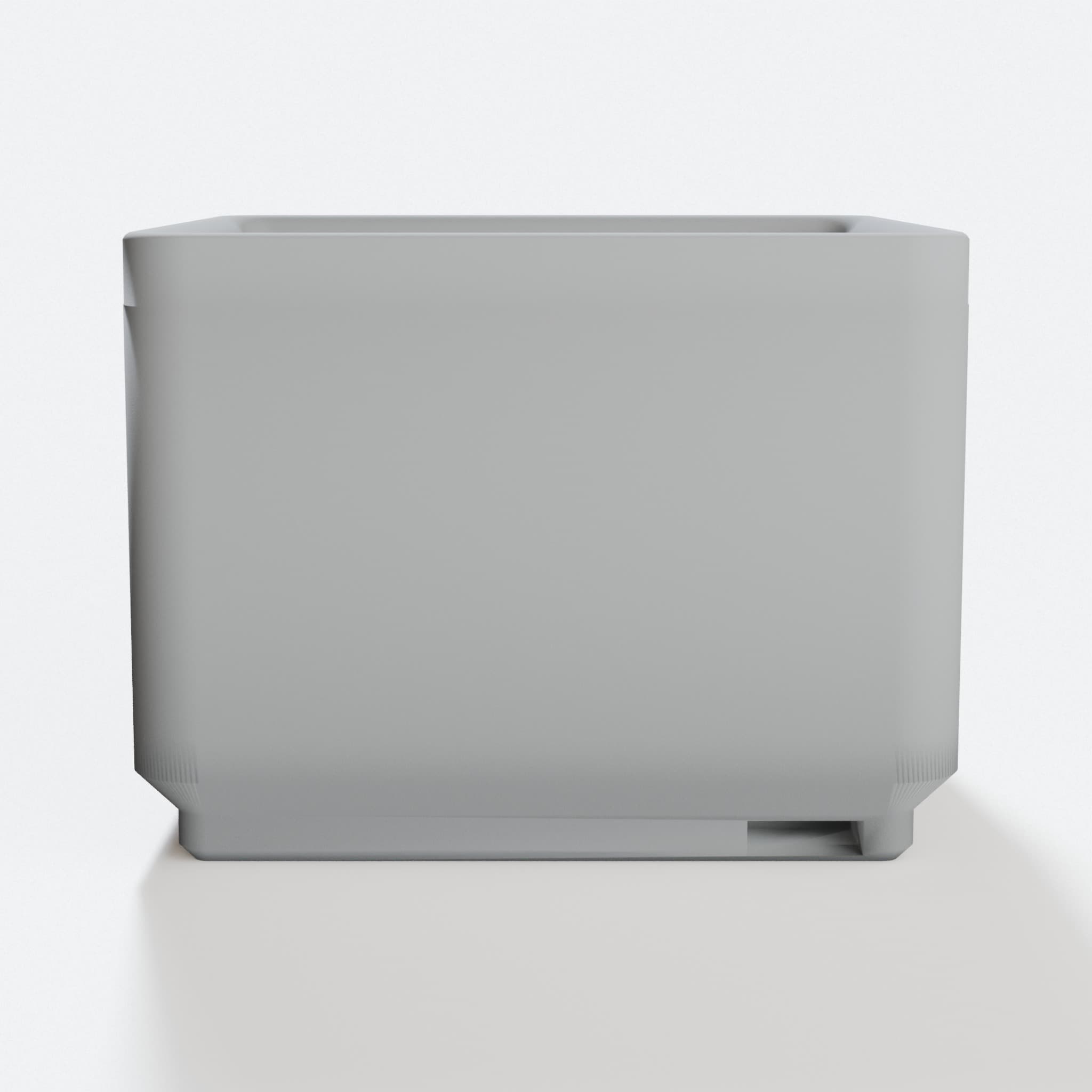

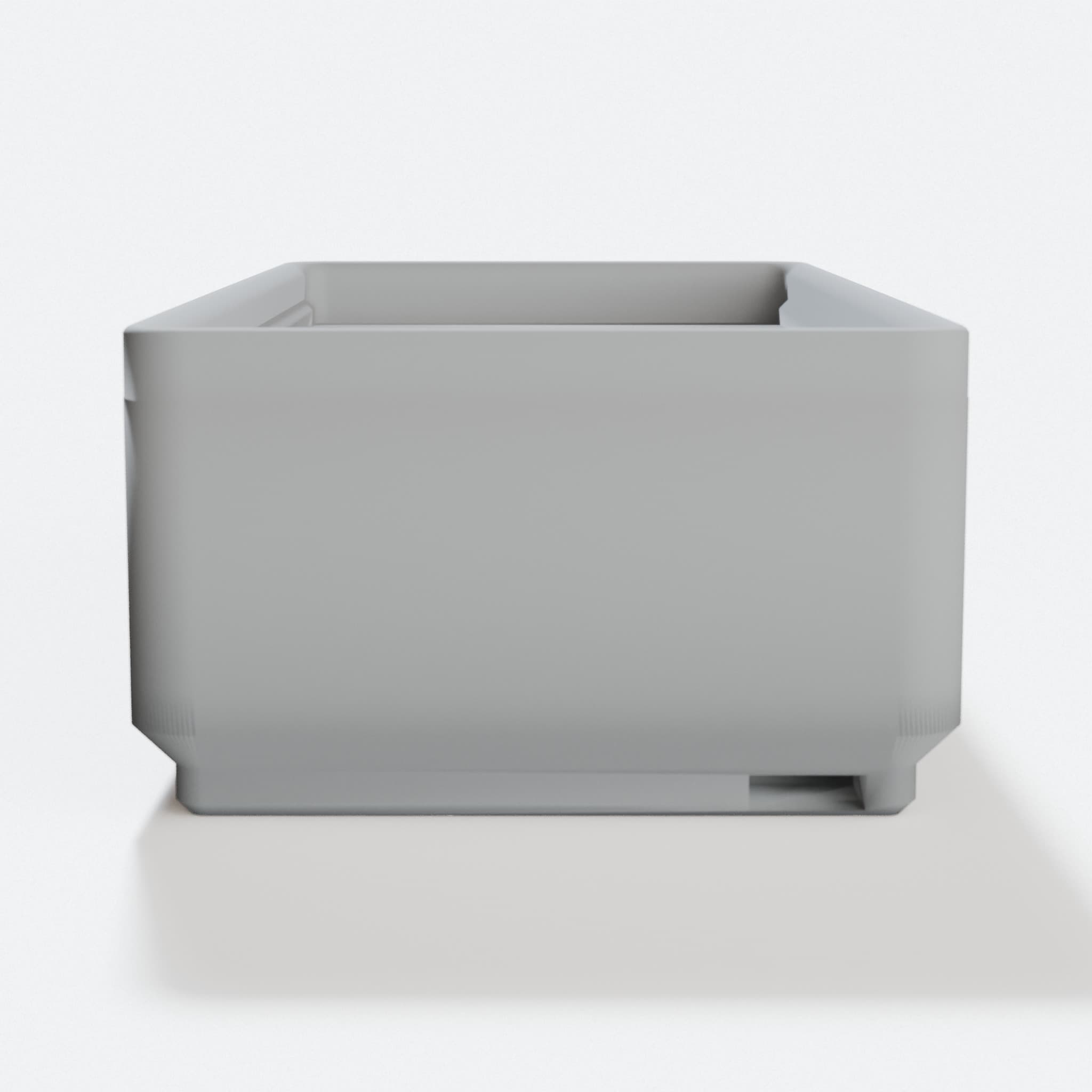

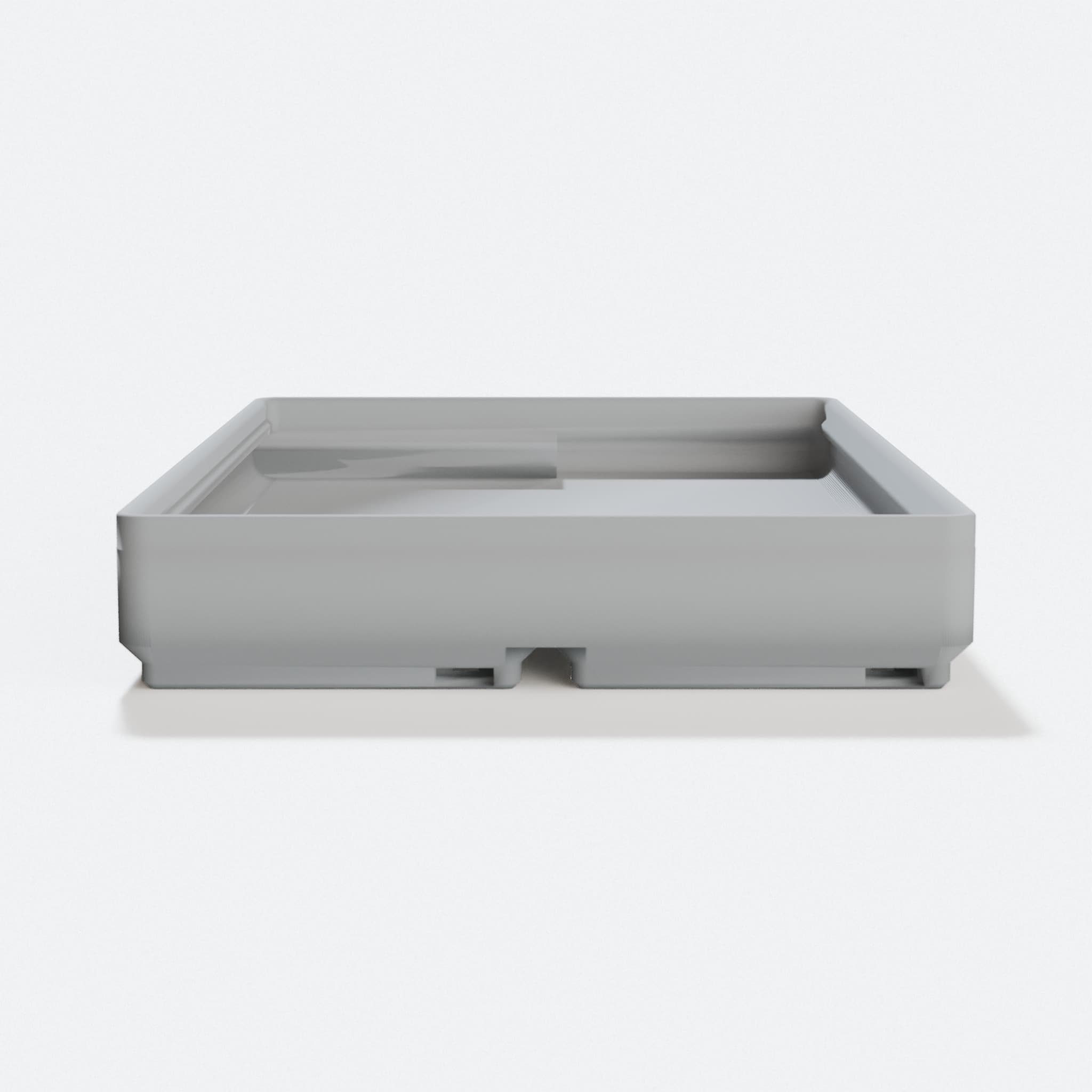

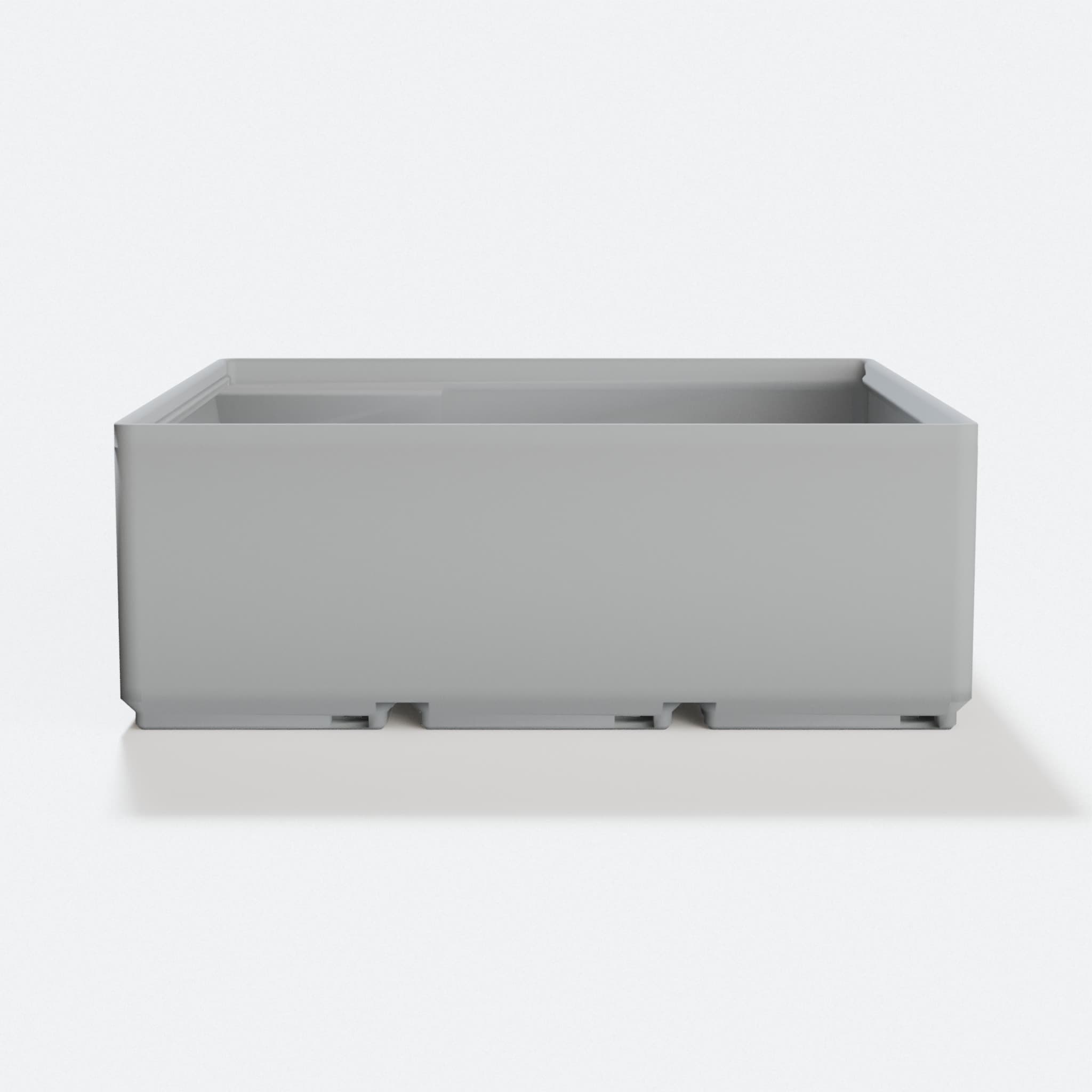

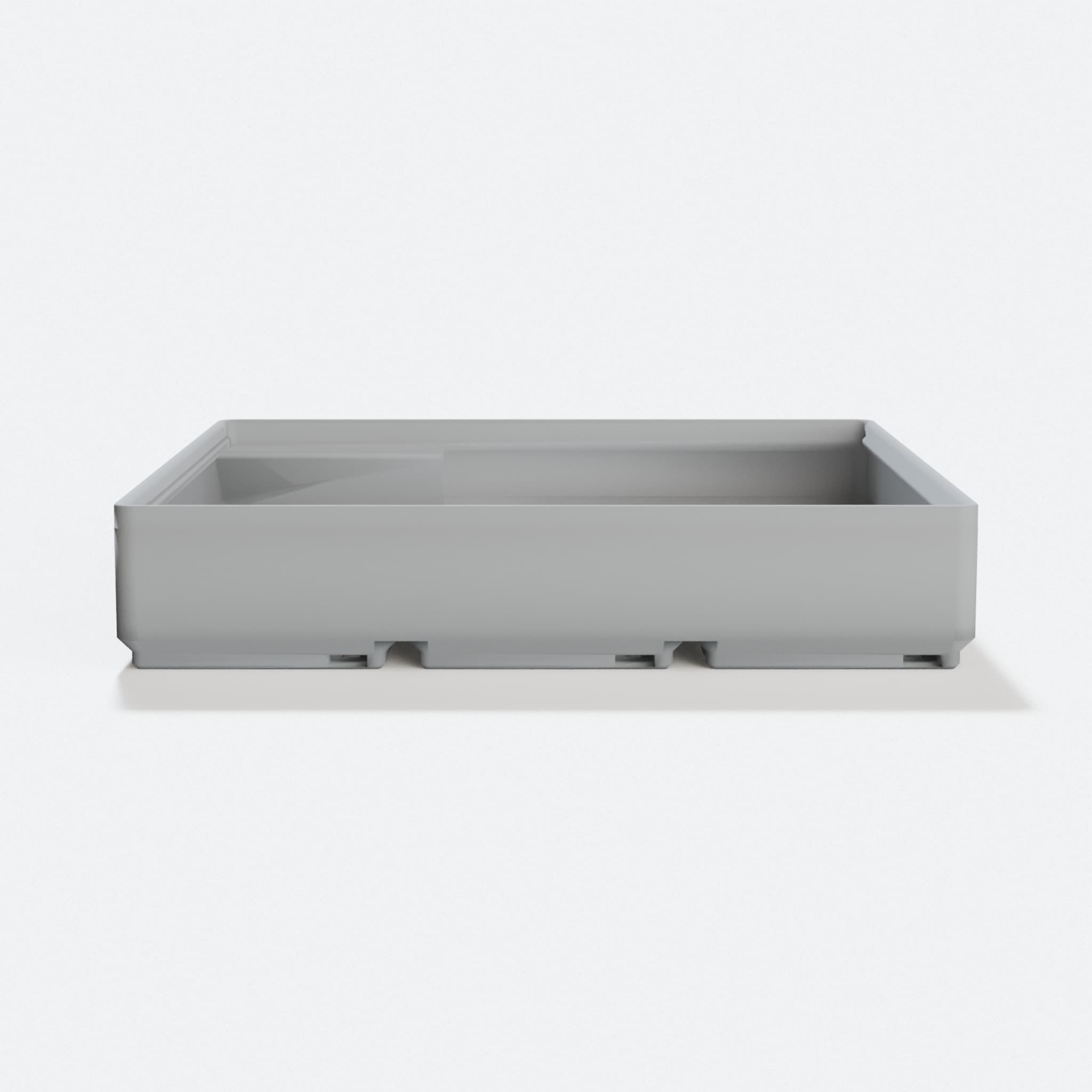

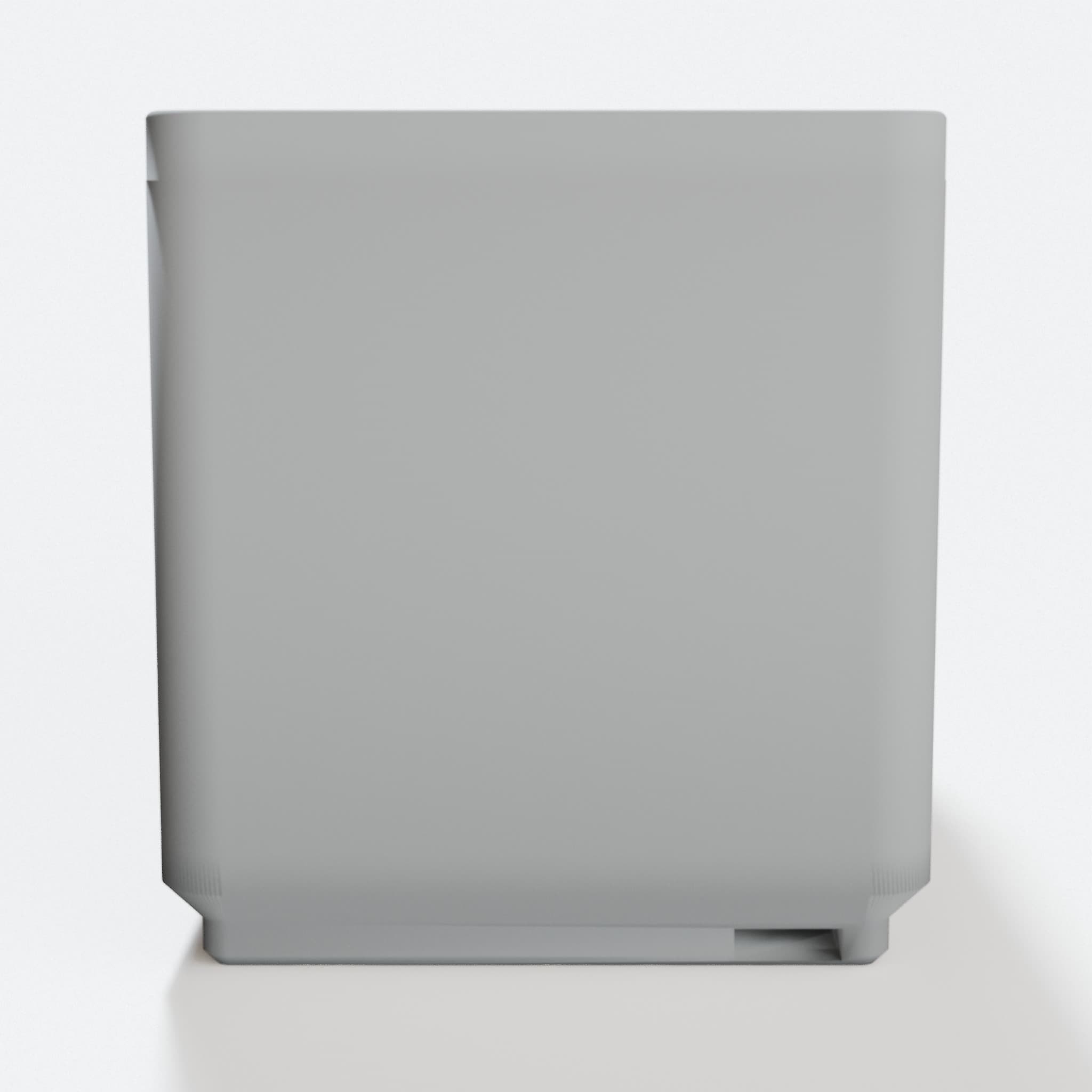

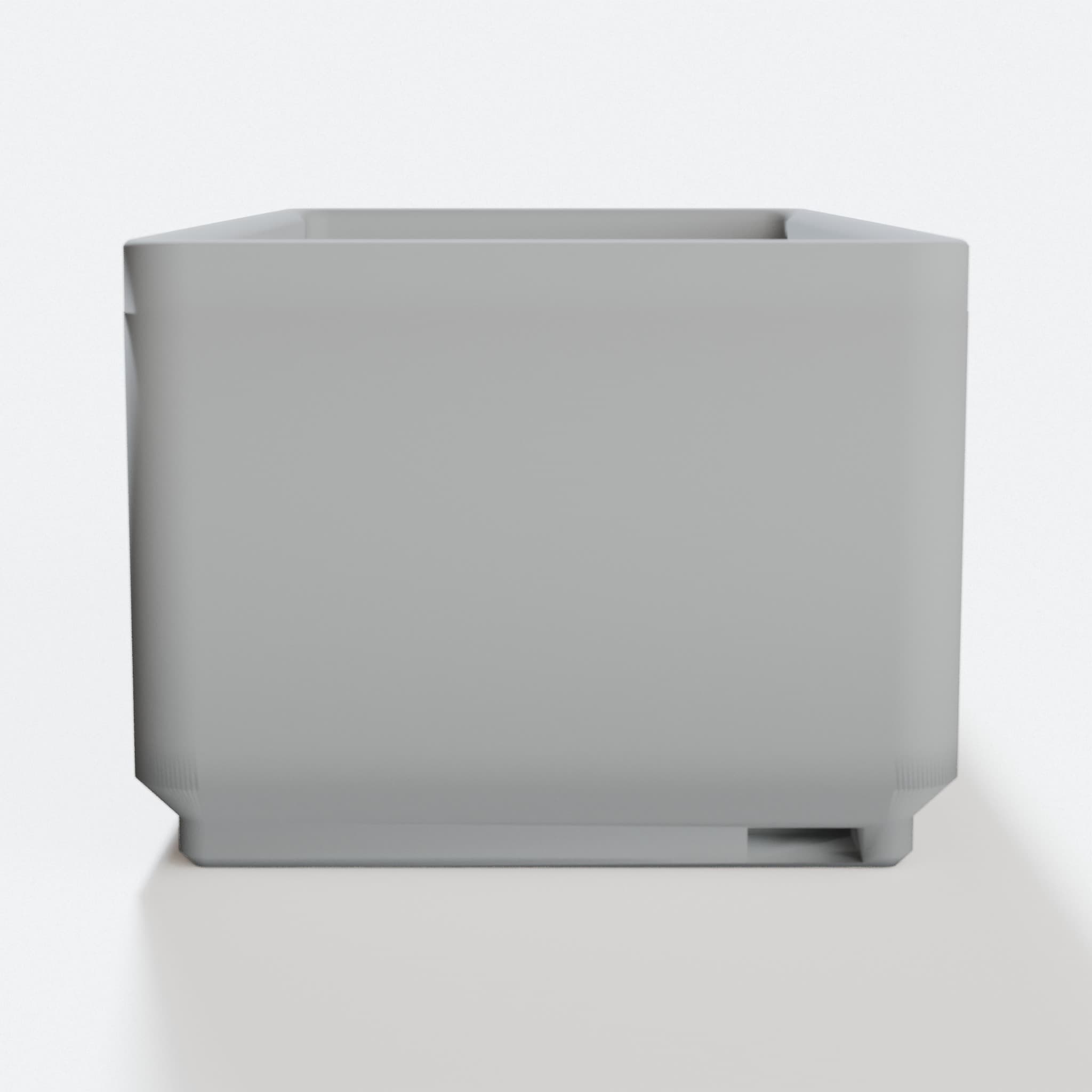

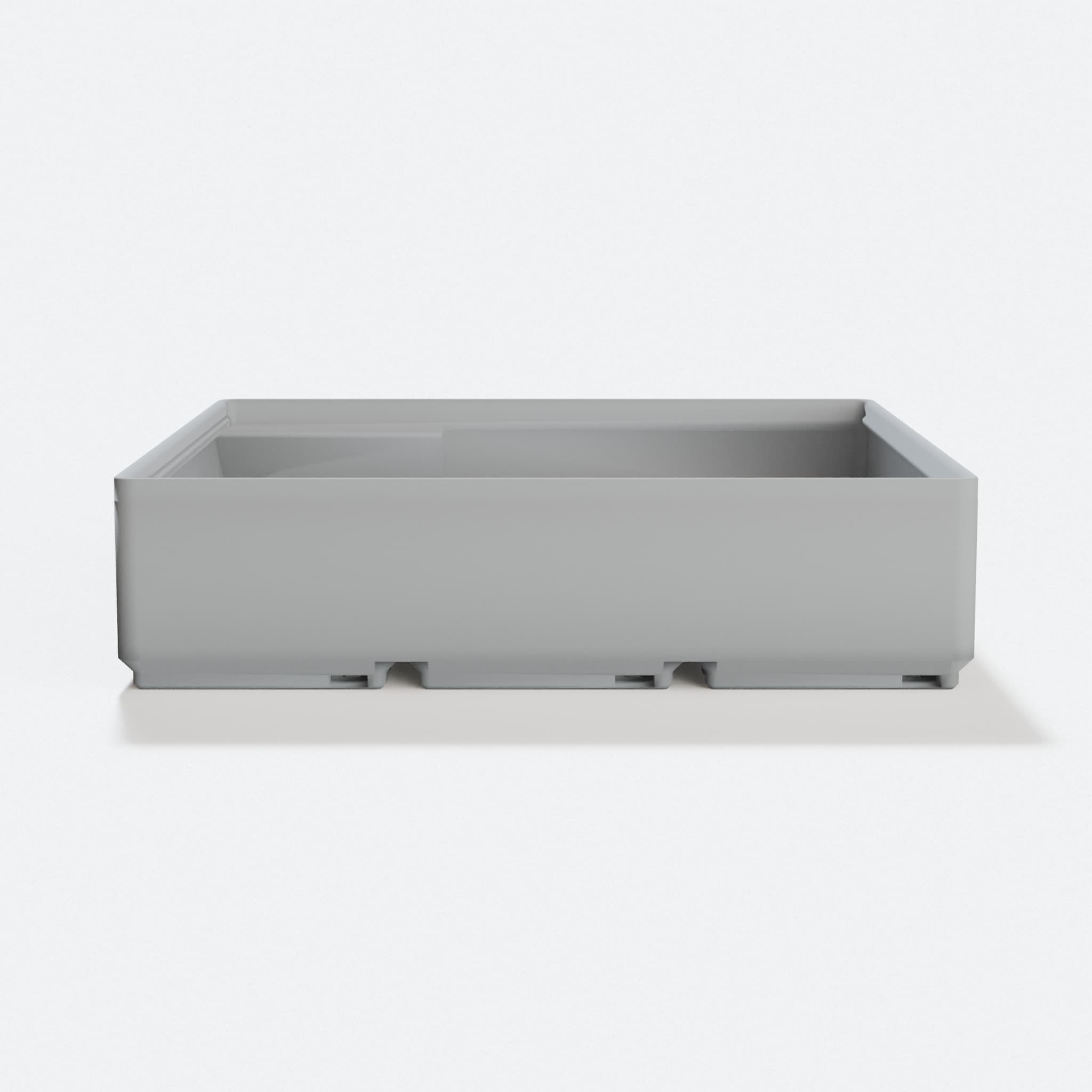

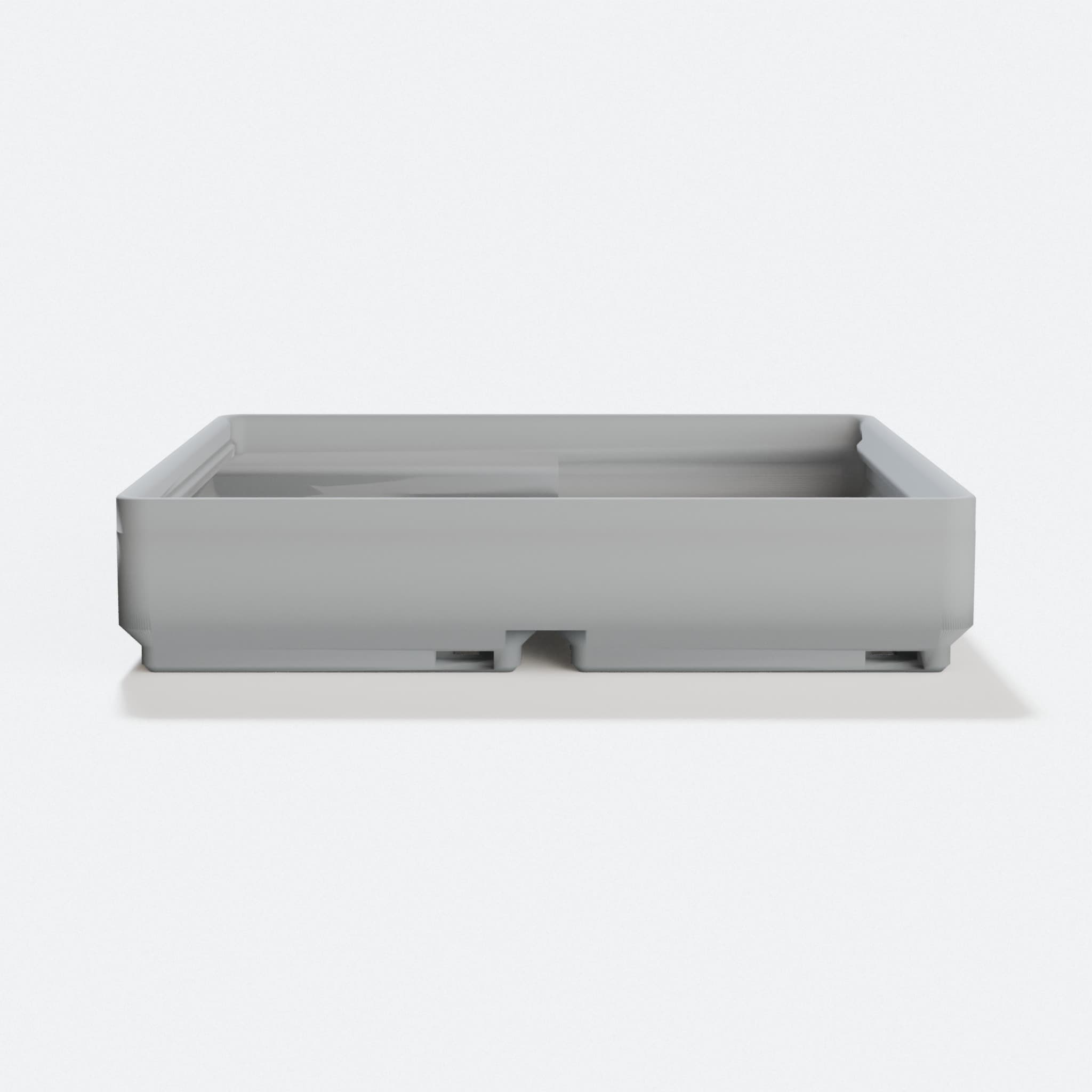

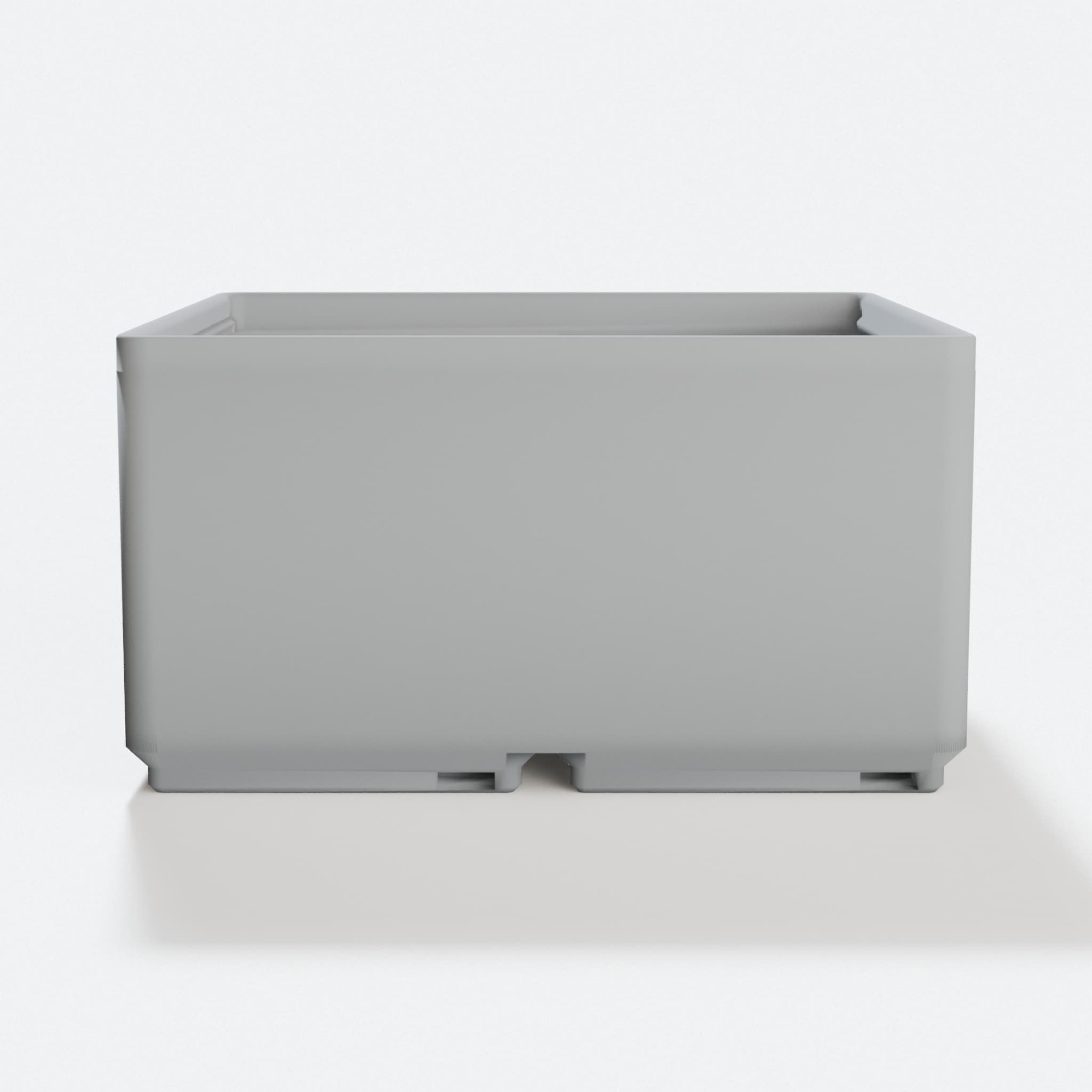

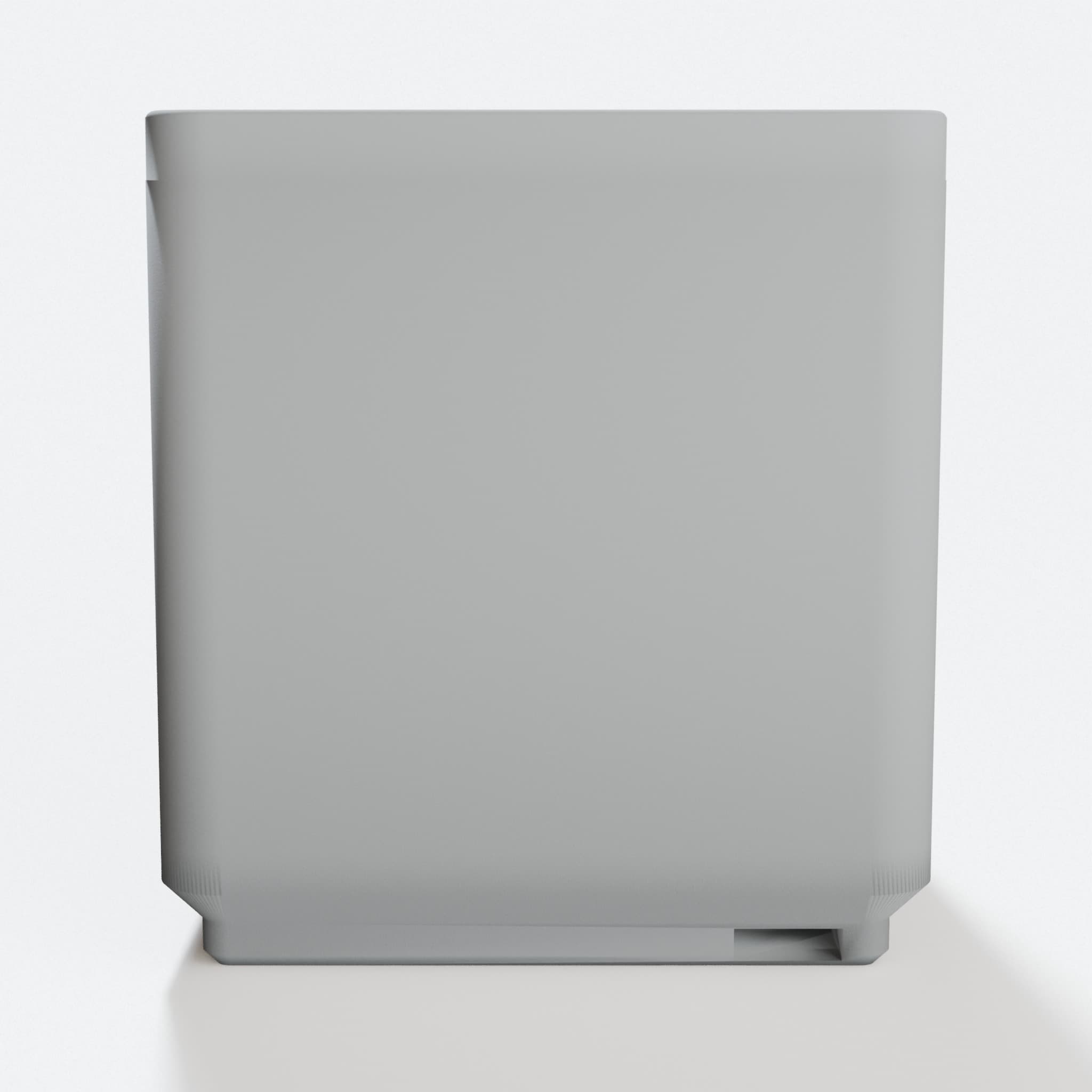

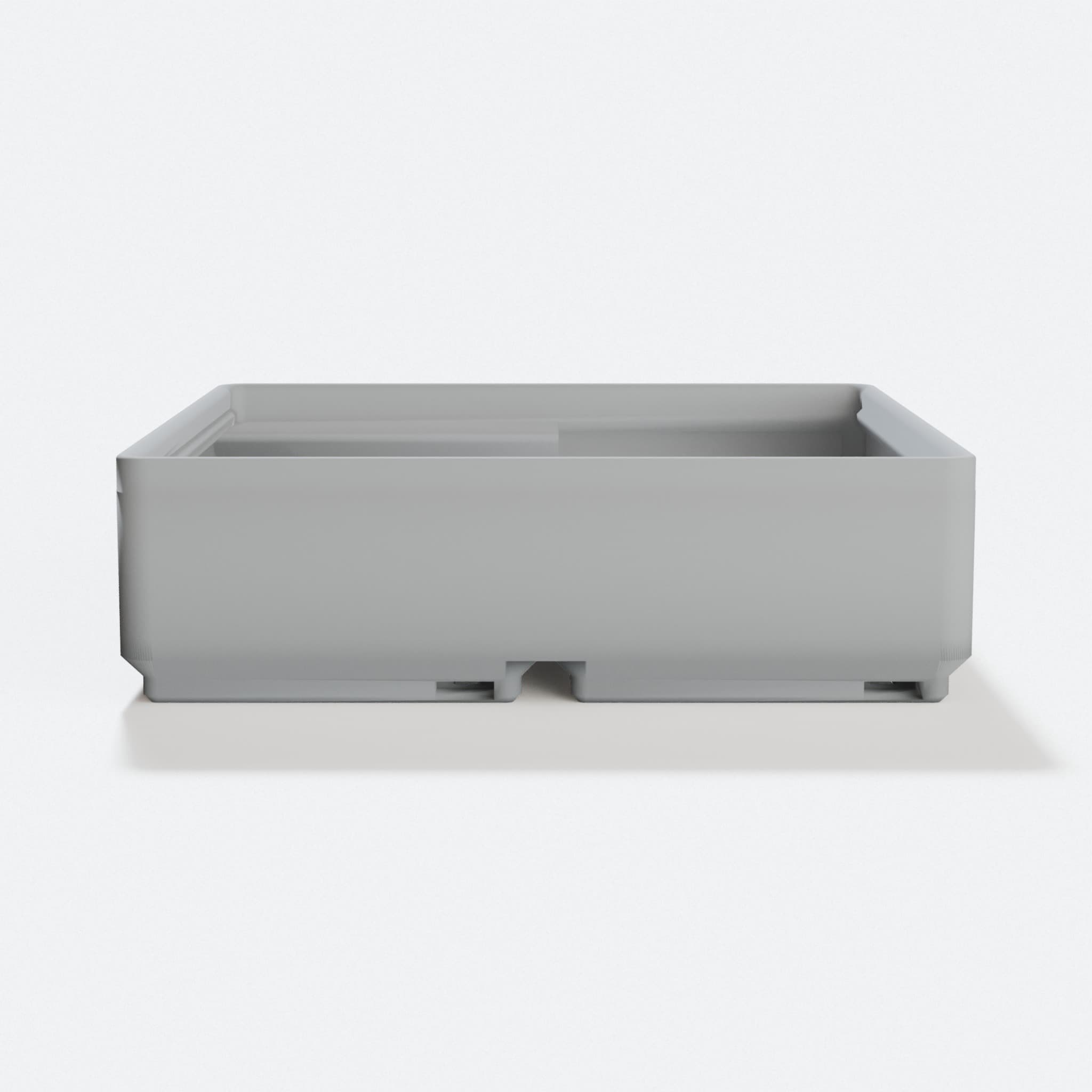

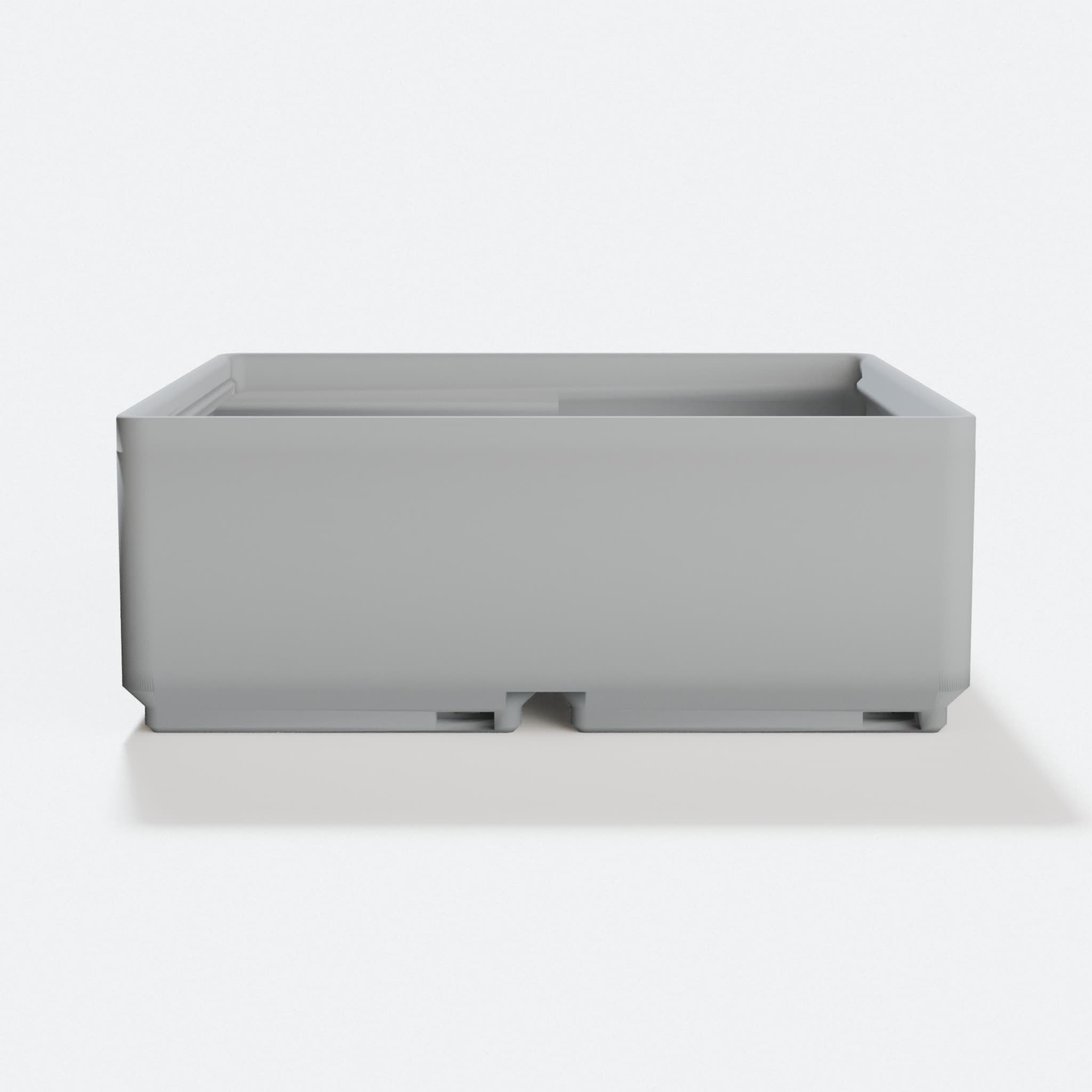

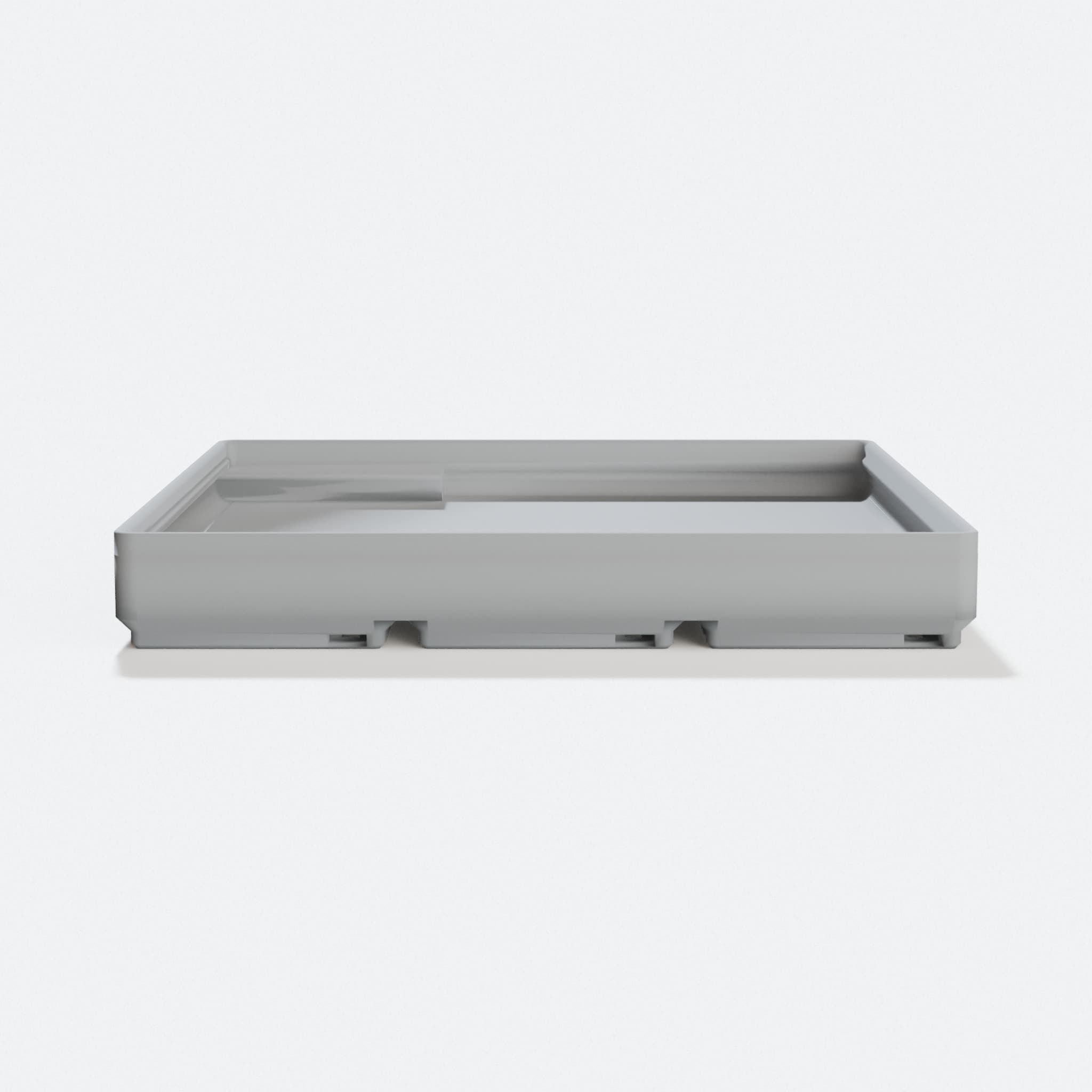

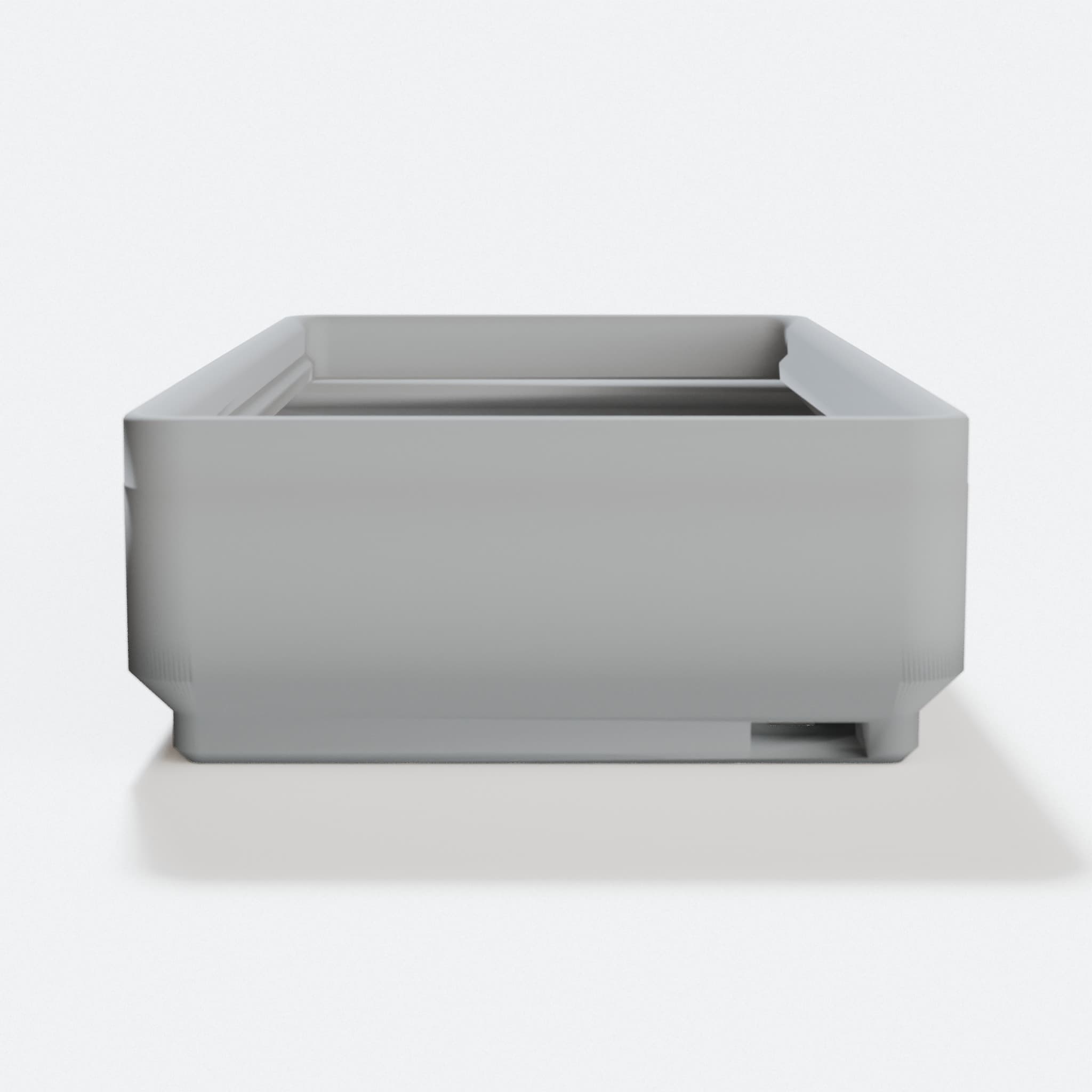

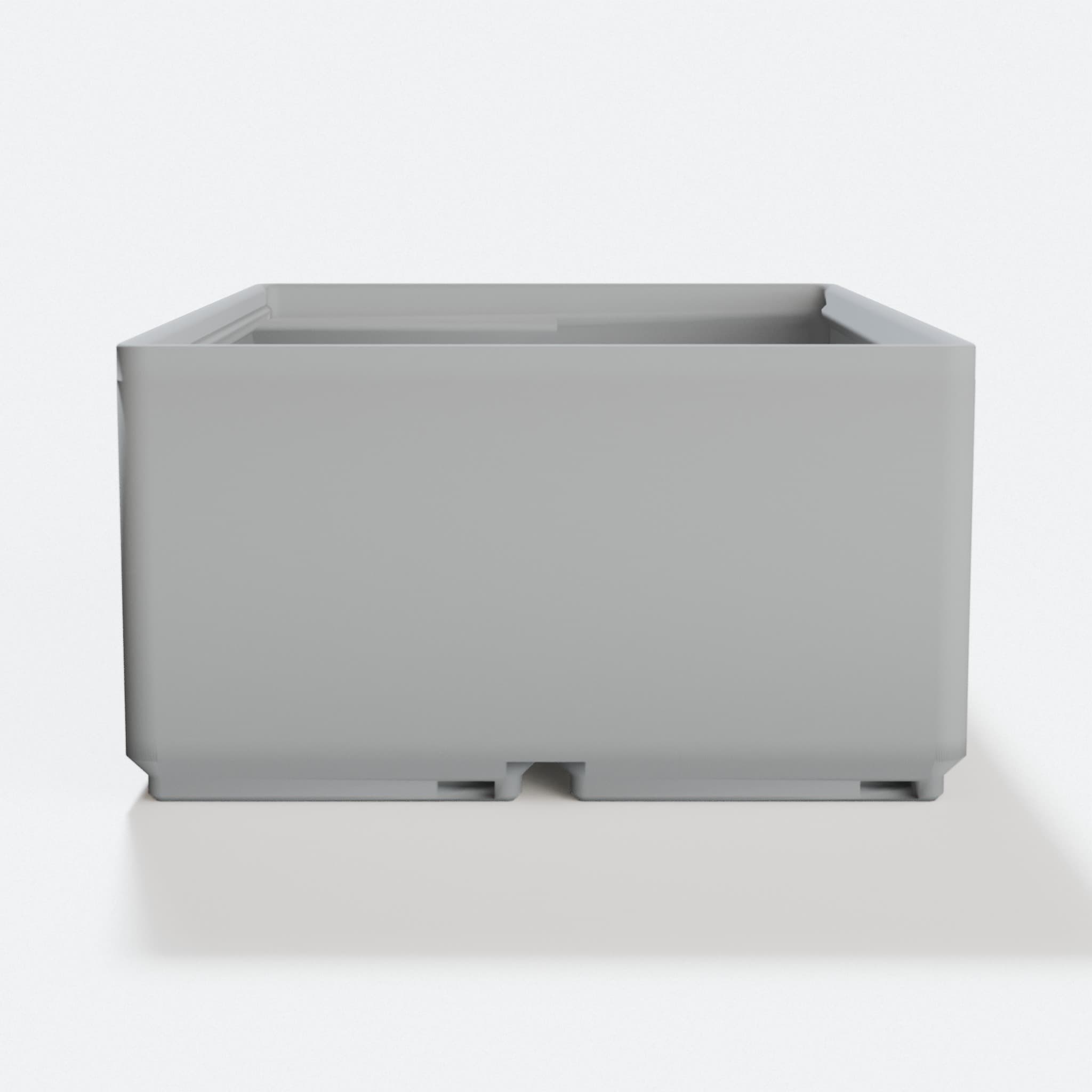

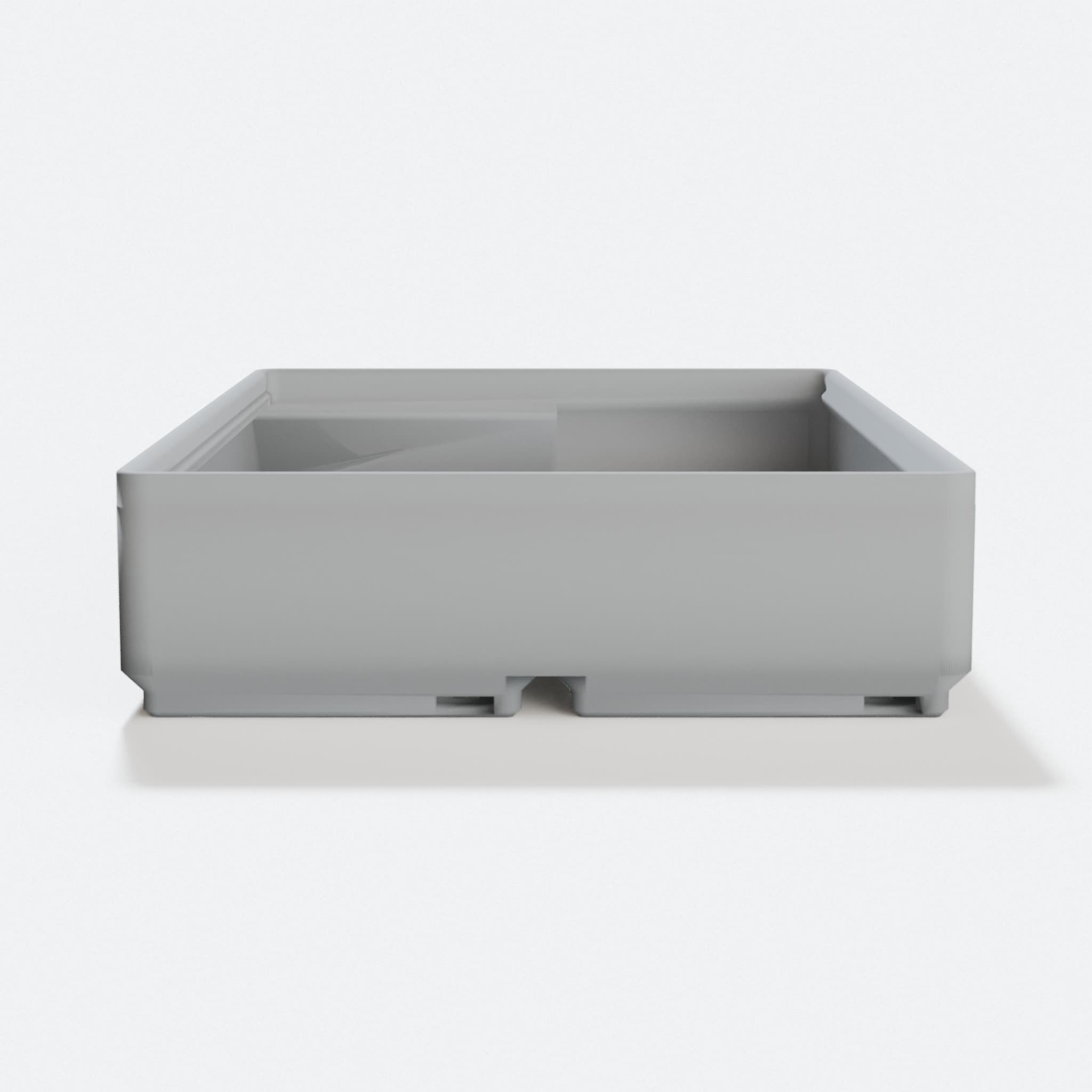

Our stock Gridfinity bins run from 1x1 up to 3x3 cells, in heights from 2u to 6u. That covers screws, pens, cables, tape, and most drawer clutter.

Need something else? The part builder makes a bin to your exact numbers, up to 6 by 6 cells, with up to 4 divider slots each way. You see it in 3D with a live price before you buy.

A flat gray Gridfinity baseplate on the left, and a red, an orange, and a green bin in three different sizes on the right

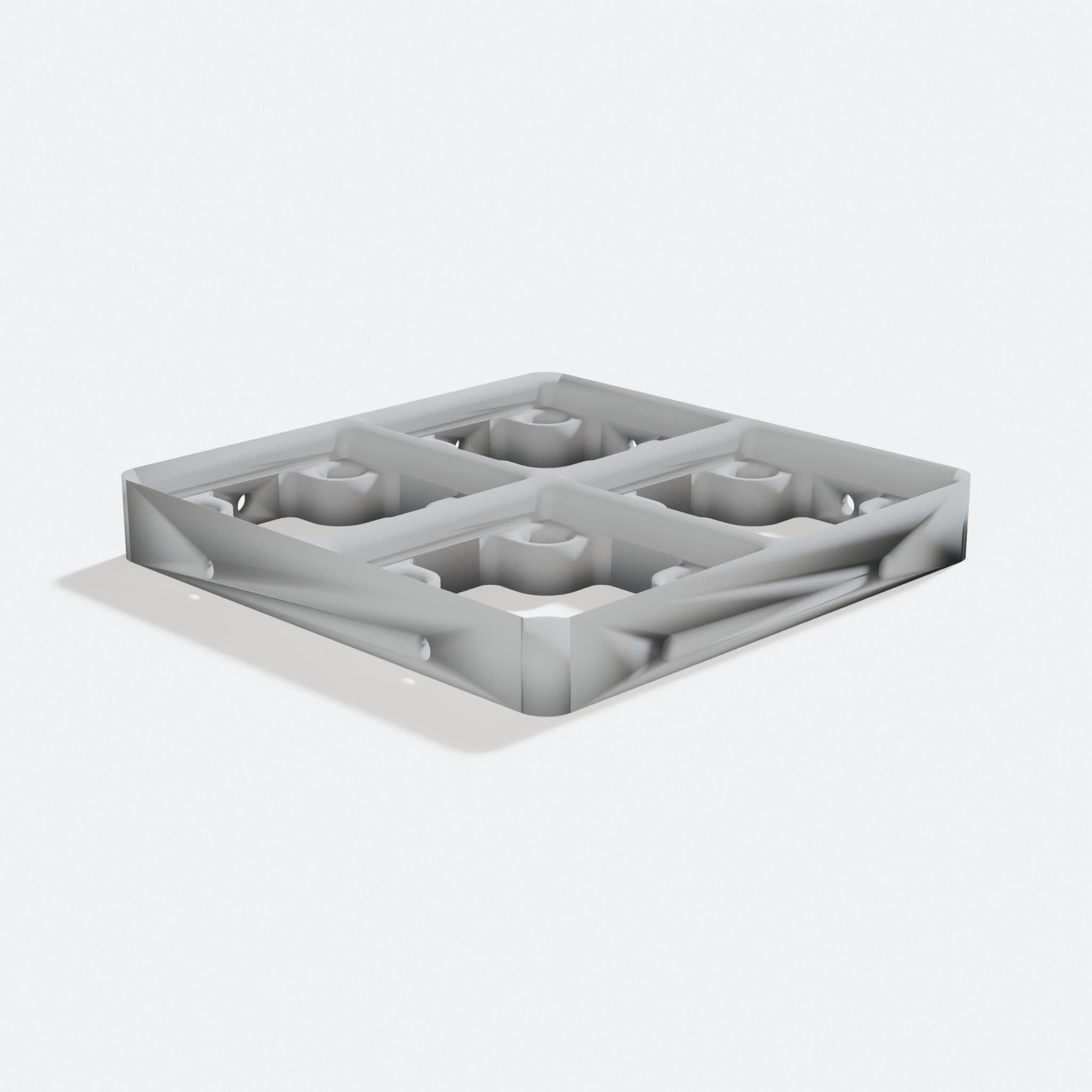

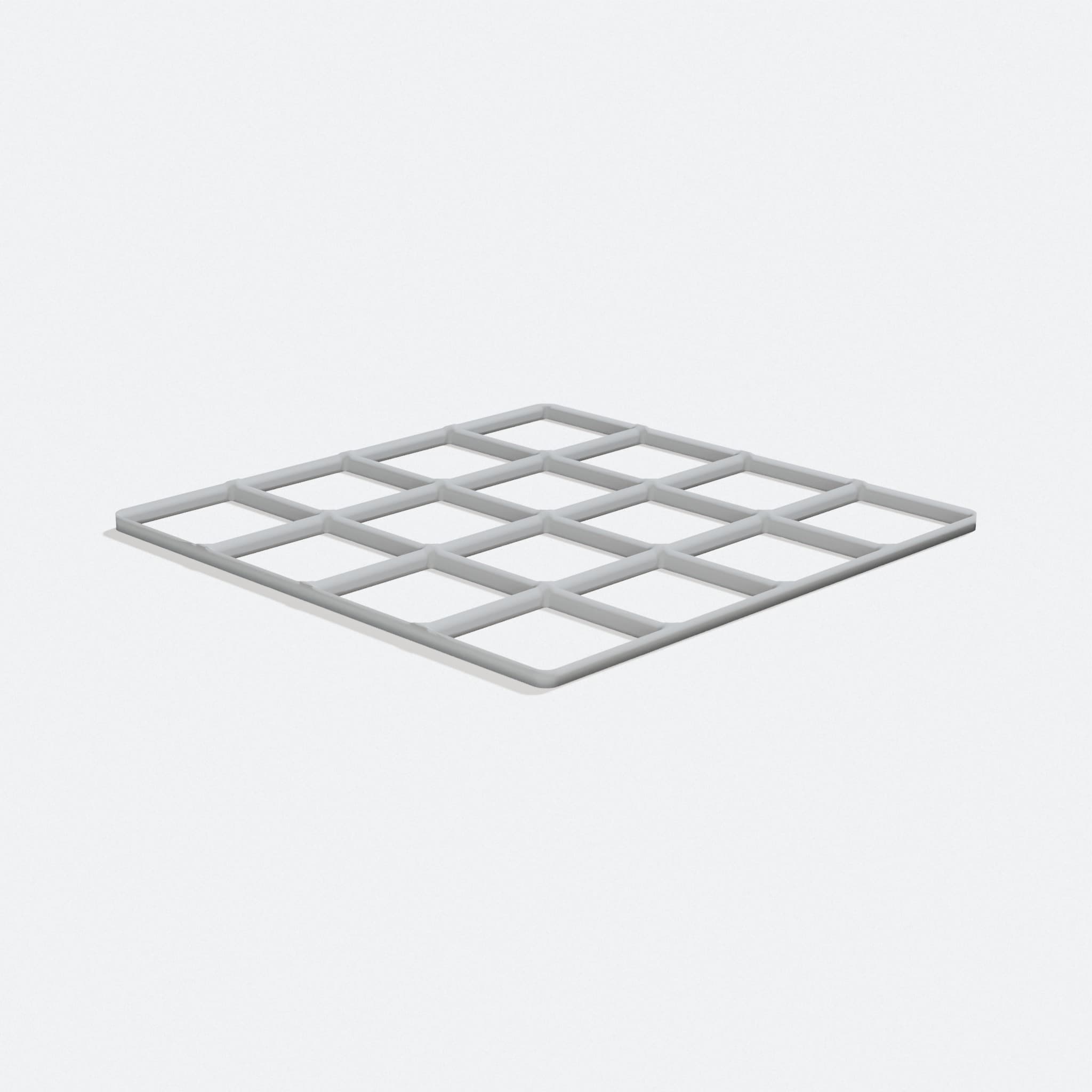

Gridfinity baseplates that fit your drawer

A baseplate is the grid itself. Measure the inside of the drawer, wall to wall, and divide by 42 to see how many cells fit. Each cell is 42 mm, about 1.65 inches.

Almost no drawer divides evenly by 42, so there is always a small gap left over. Our drawer kit builder does the math for you. Type the inside width, depth, and height, and it plans baseplates that fill the space, then prices the whole kit at once.

A tape measure stretched from the front to the back inside an empty wooden drawer, held by hand at the near edge

Gridfinity magnets and magnet size

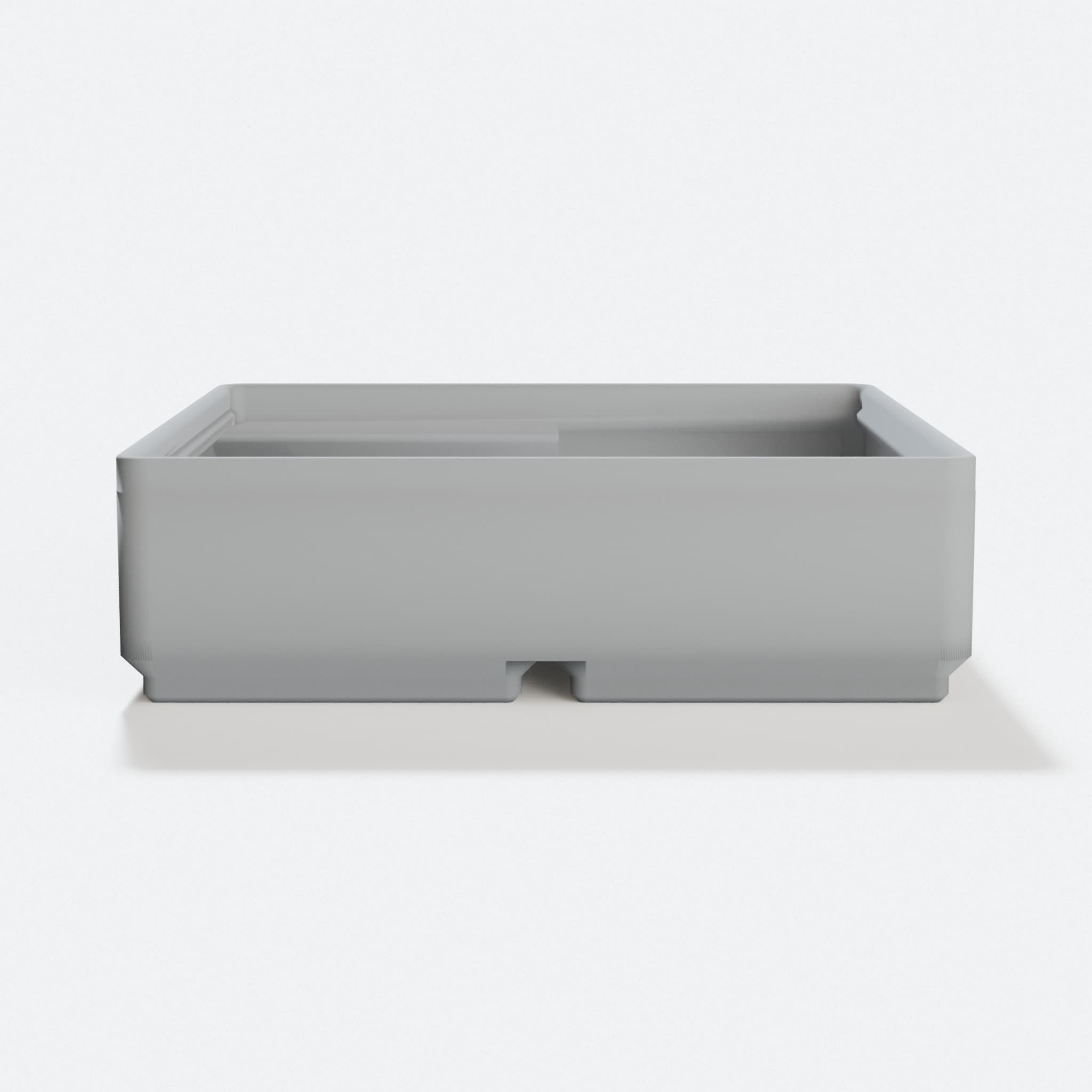

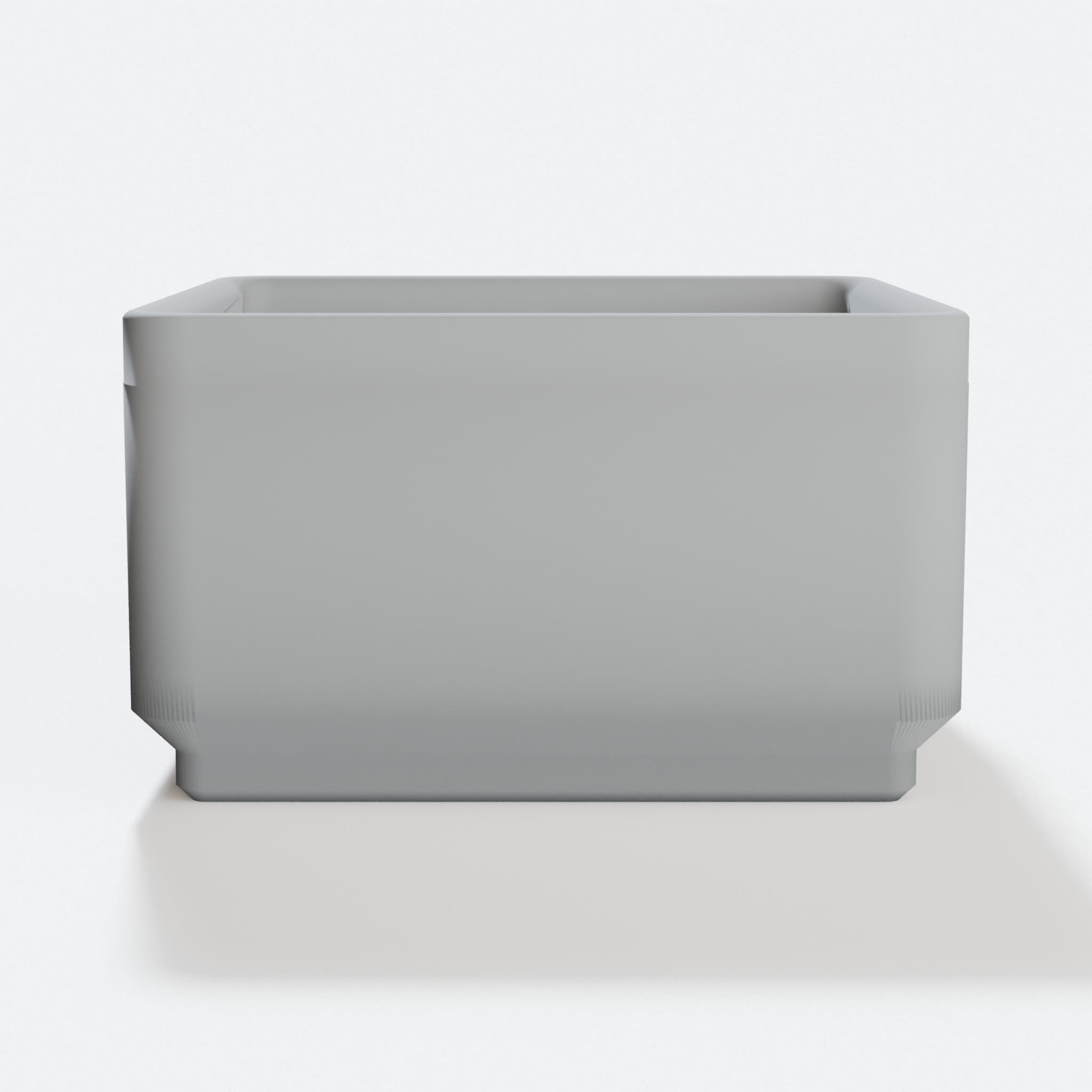

Gridfinity uses 6 mm by 2 mm disc magnets. A bin can hold up to four per cell, set into holes in the base.

In a drawer you do not need them. Gravity plus the baseplate lip does the work. Magnets earn their keep on portable trays and in vehicles, where a bump could lift a bin. We print magnet-ready bins on request, so you can add magnets any time.

Gridfinity drawer organizer setups

Almost any small thing that rolls around a drawer has a Gridfinity answer. Makers use it to tame the clutter in a workshop, an office, a kitchen, and a craft room.

Screws, bits, and fasteners in the shop
Pens, clips, and cables on the desk
Spice jars, measuring spoons, and gadgets in the kitchen
Batteries, chargers, and cords in the junk drawer
Dice, minis, and game pieces on game night

A desk drawer with an orange bin of tape rolls, a purple crate of clips and blocks, and a green tray holding pencils, pens, and a coiled cable

Gridfinity toolbox and socket organizers

Tool chest drawers are where Gridfinity shines hardest. Sockets stand up in 1x1 bins, one size per bin. Screwdrivers get a rack. Pliers get a wide tray. When the drawer opens, every tool shows its face.

Have a tool with a weird shape? Our trace tool makes a bin shaped to it from one photo. Lay the tool on copy paper, snap a picture, and we shape the pocket.

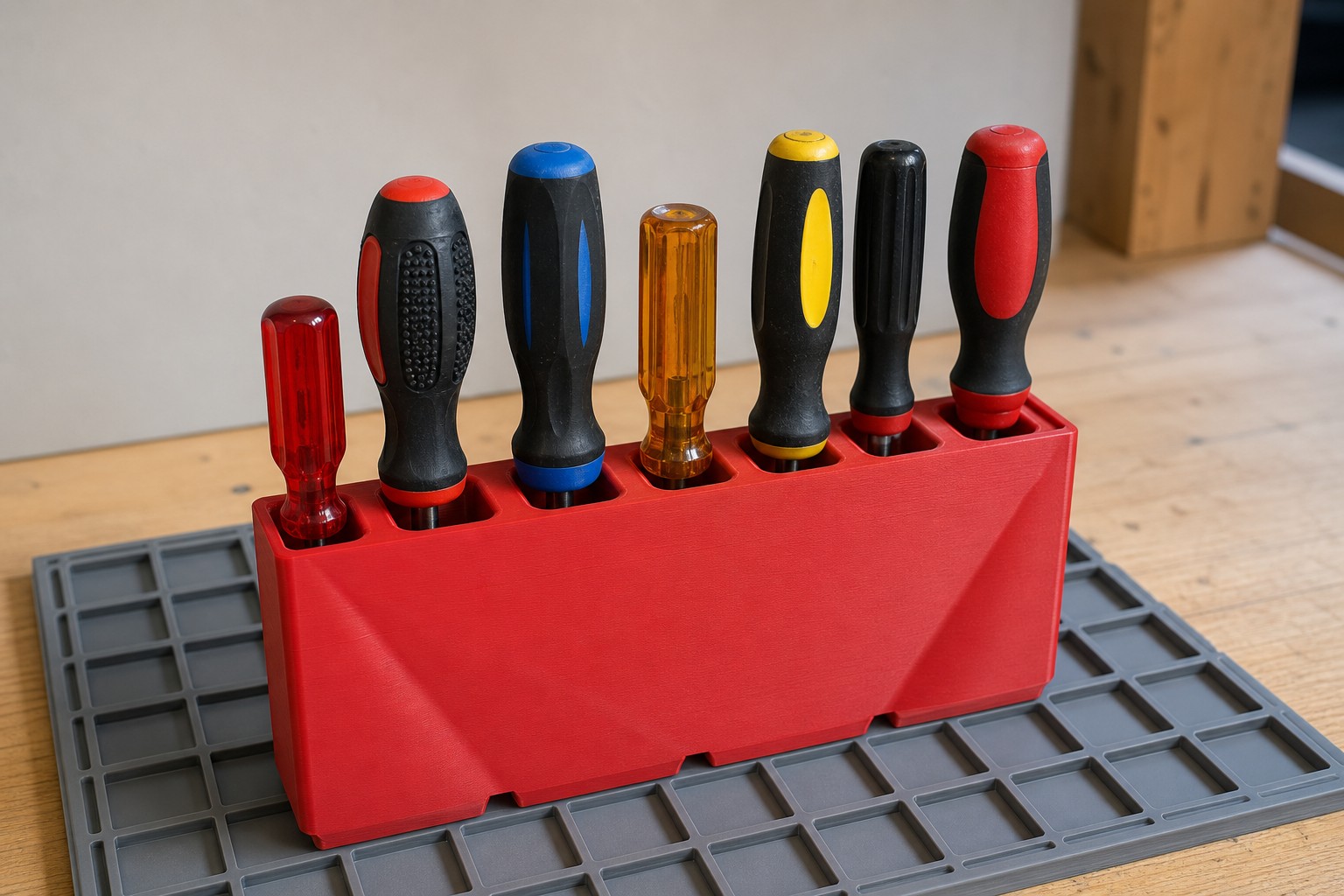

A red printed screwdriver rack on a workbench holding seven screwdrivers upright, sitting on a gray grid mat

Gridfinity 2.0 and what changed

Gridfinity 2.0 is Zack Freedman’s update to his original spec. The part that matters did not change: the grid is still 42 mm, so new parts and old parts fit together.

The update trimmed what the design asks for. Magnets became a choice instead of a rule. Our bins follow the spec, so they drop onto any Gridfinity baseplate from any maker, in either version.

Should you print Gridfinity in PLA or PETG?

PLA is the classic choice for Gridfinity. It is rigid, holds sharp edges, and comes in the most colors, which makes it perfect for drawers and desks.

Pick PETG when a part will take heat or hard knocks, like a bin in a hot garage or a shop drawer that gets slammed. PETG is tougher and bends a little instead of cracking. Both print great, and you choose the color and material when you order.

Design your kit Build a custom part
