BLTouch Mount for Ender 3 - No Supports Needed

Your printer, running the way it should.

40k downloads in the maker community

$15.61

Color: Gray

Printed in the USA when you order.

1.You order it
2.We print it fresh
3.It ships to you

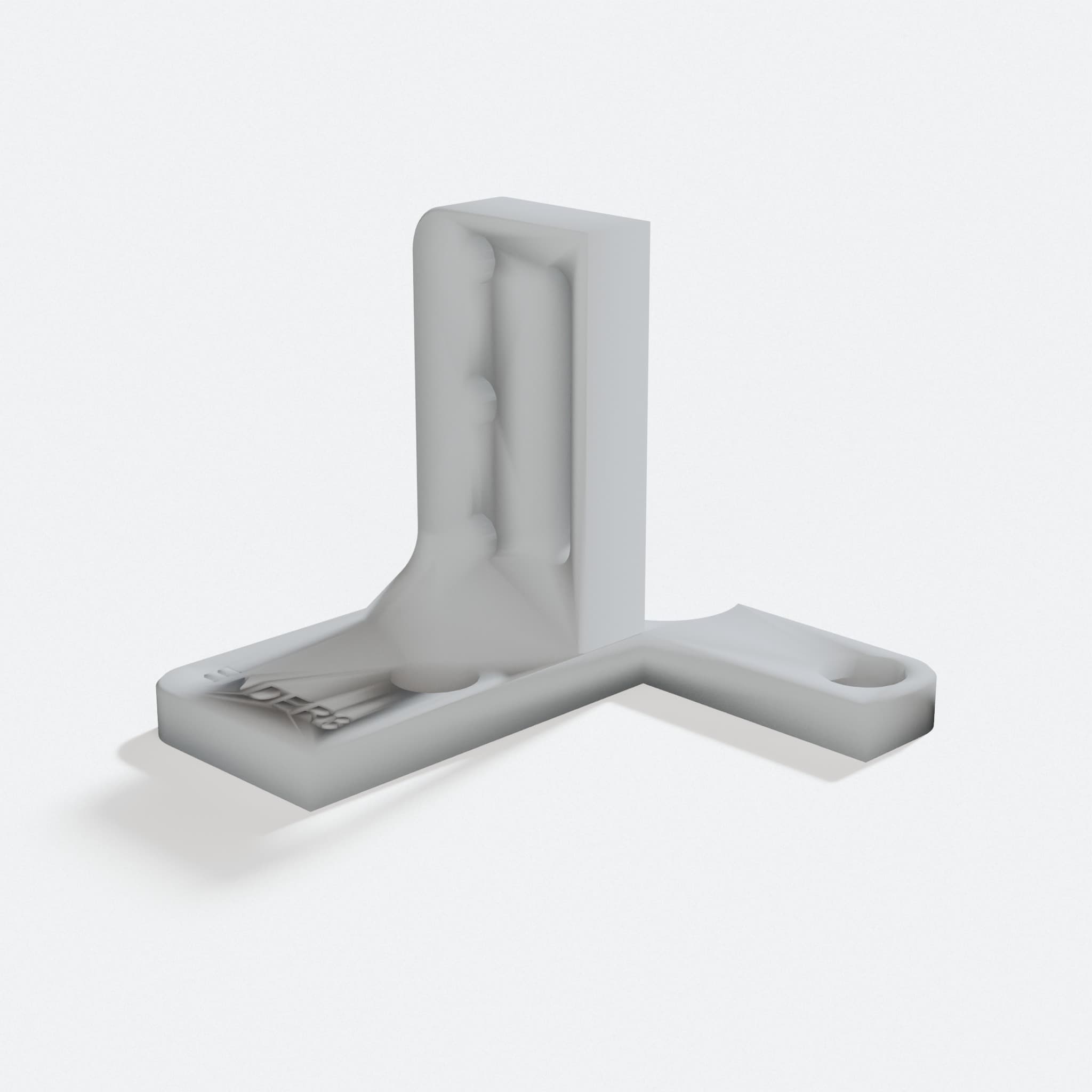

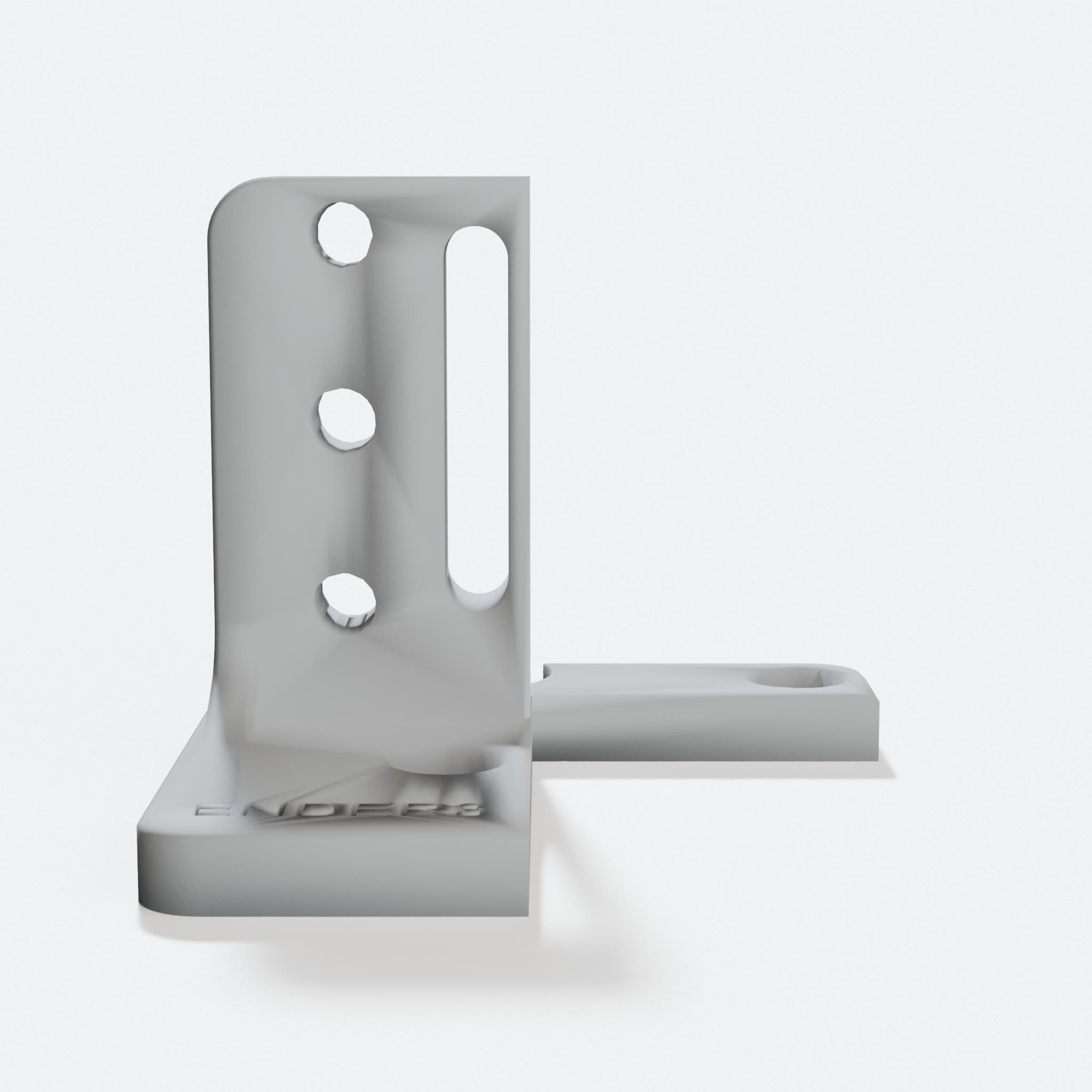

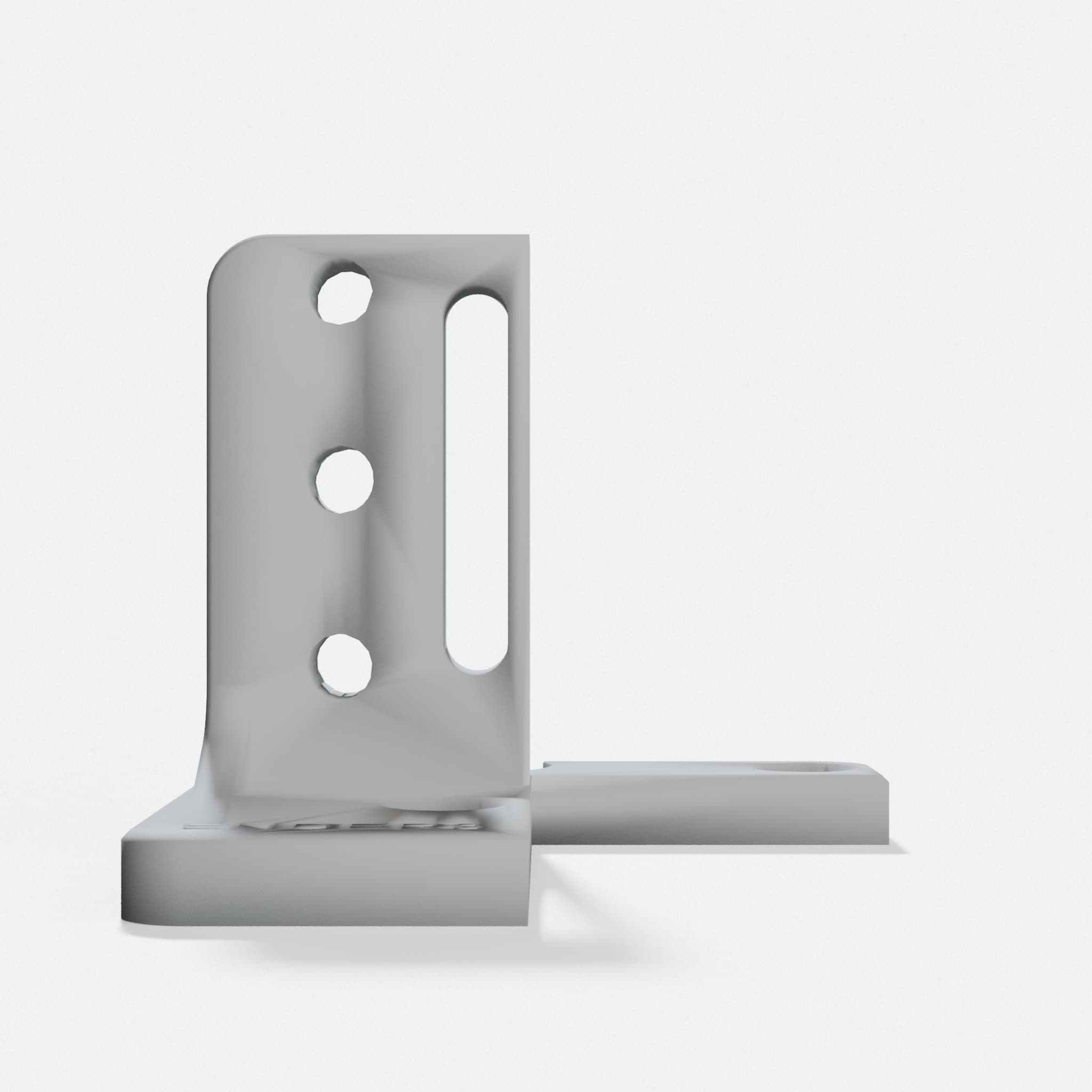

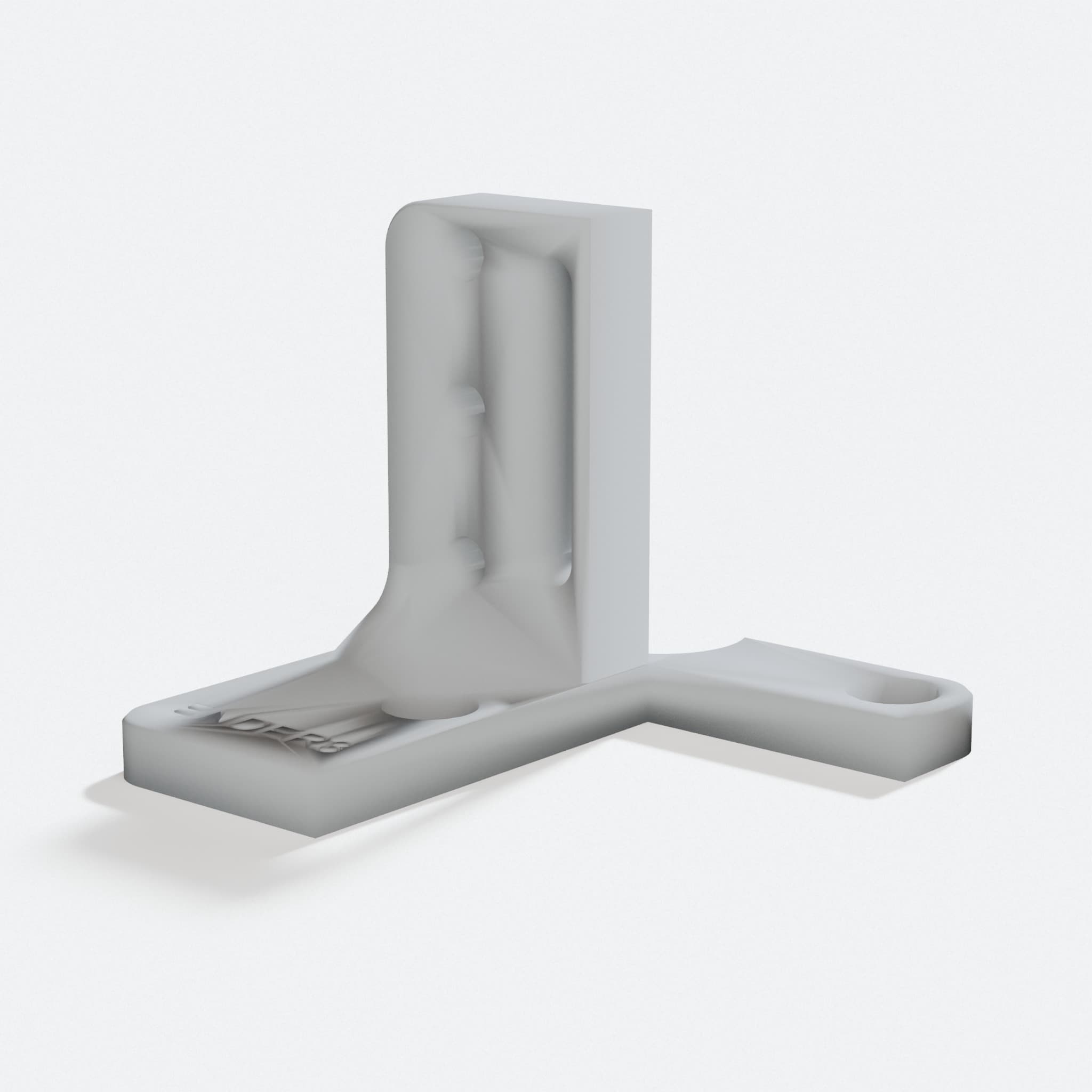

Drop-in BLTouch mount designed specifically for Ender 3 printers
Prints without supports thanks to rounded corner design
Verified offsets included: X -42mm, Y -5mm from nozzle
Compatible with BL-Touch V3.1 auto bed leveling sensors
Streamlined design makes installation and calibration straightforward

This BLTouch mount for the Ender 3 brings auto bed leveling capability to your printer with a design optimized for easy printing and installation. The mount securely positions your BL-Touch or 3D-Touch sensor at the correct offset from the nozzle, enabling consistent first-layer adhesion across your entire build surface.

The key improvement in this design is its support-free printing. Rounded corners eliminate overhangs, so you can print this mount without supports—saving material and reducing cleanup time. The design maintains the proven dimensions of earlier versions while improving printability.

Confirmed offsets are provided for firmware configuration: X offset -42mm and Y offset -5mm from the nozzle. Users report a Z-offset around -1.75mm for the BL-Touch V3.1 on Ender 3 Pro as a starting point, though final Z-offset calibration will be unique to your specific setup.
