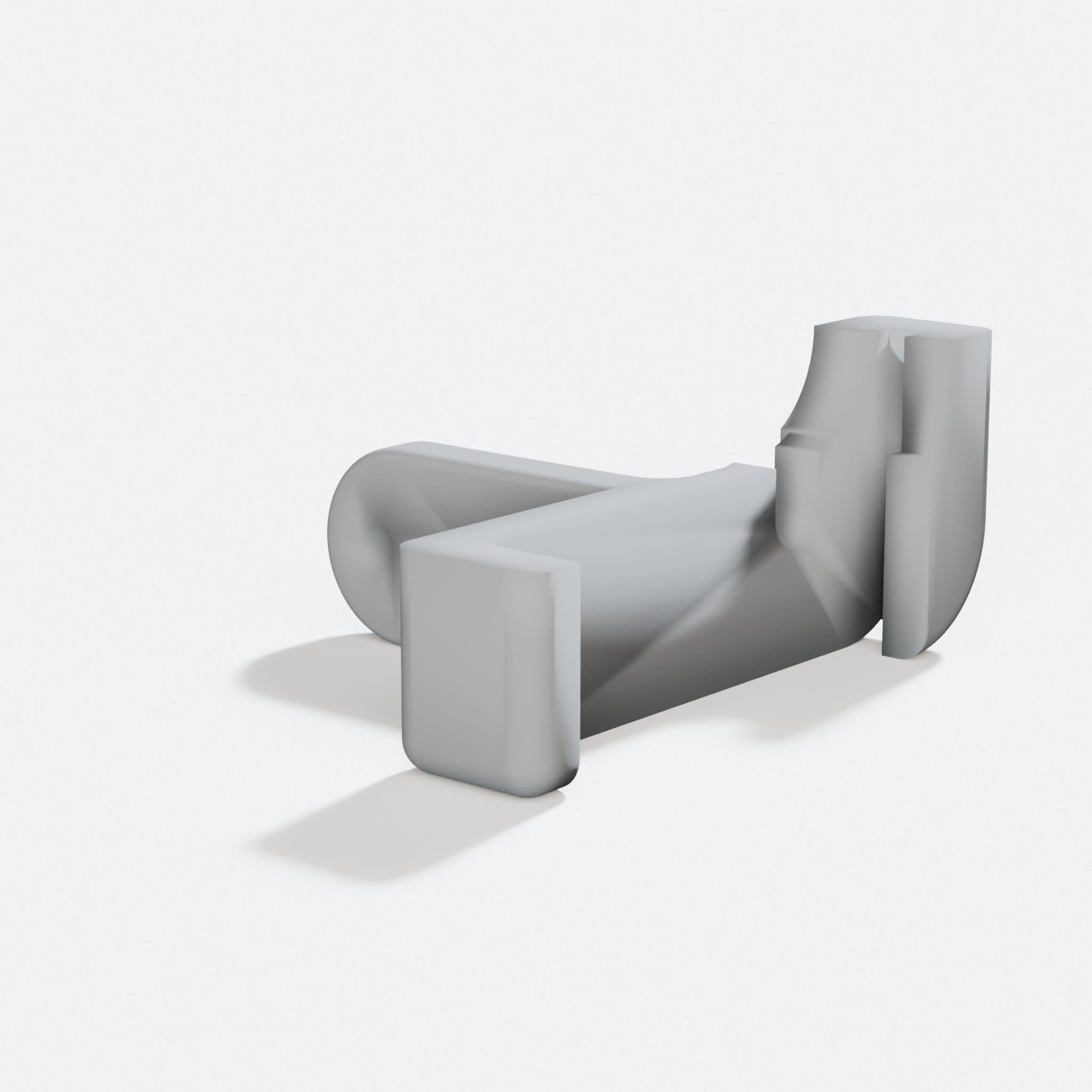

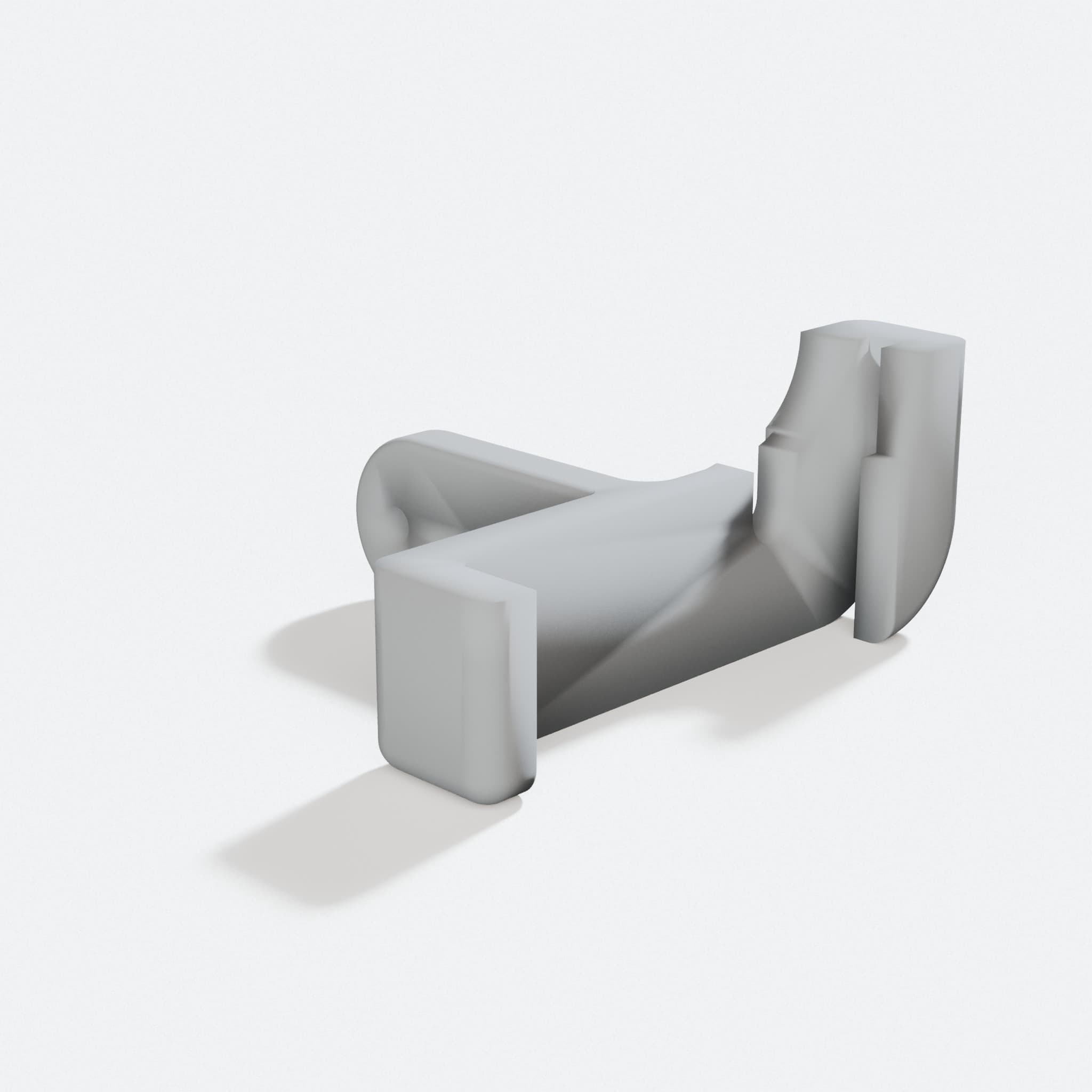

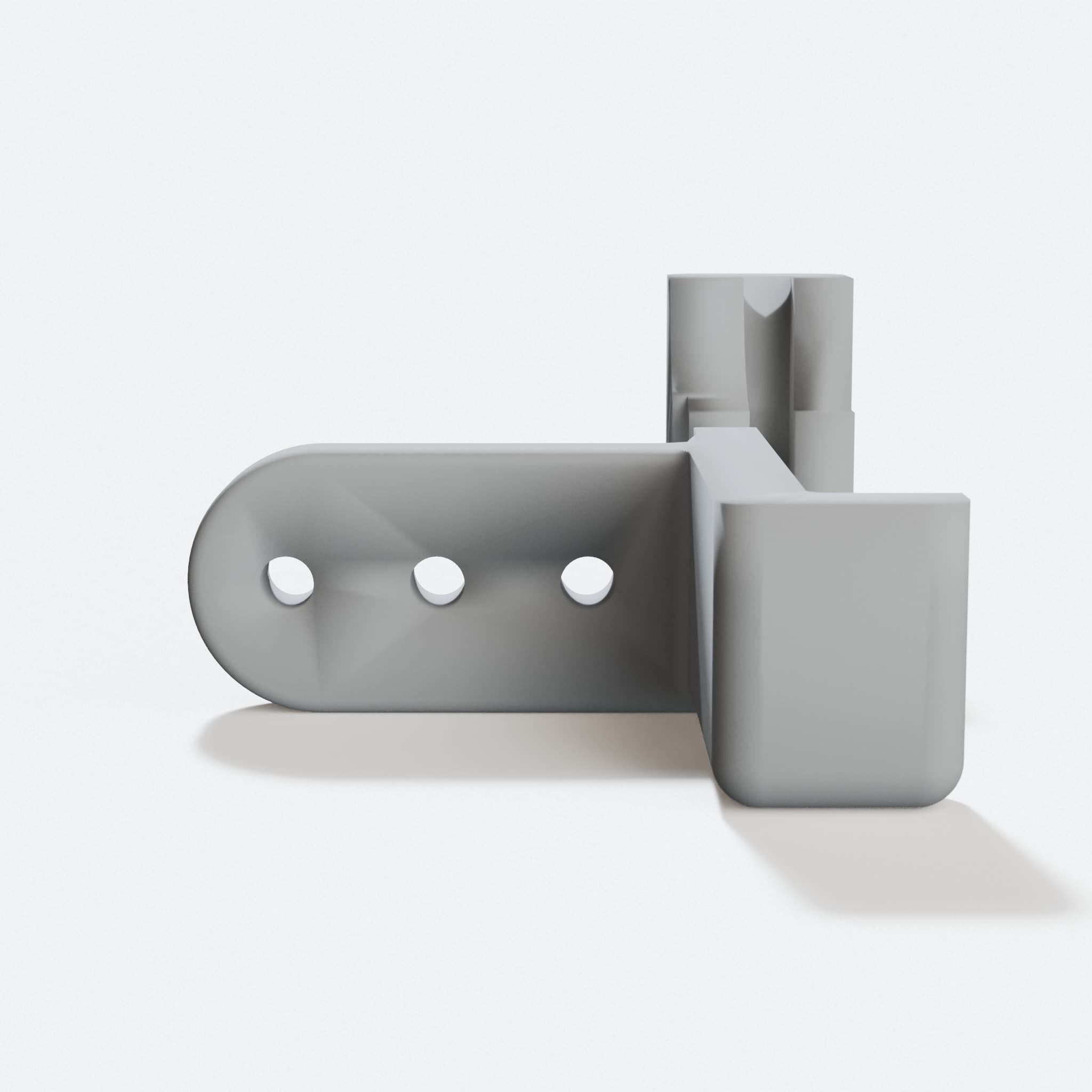

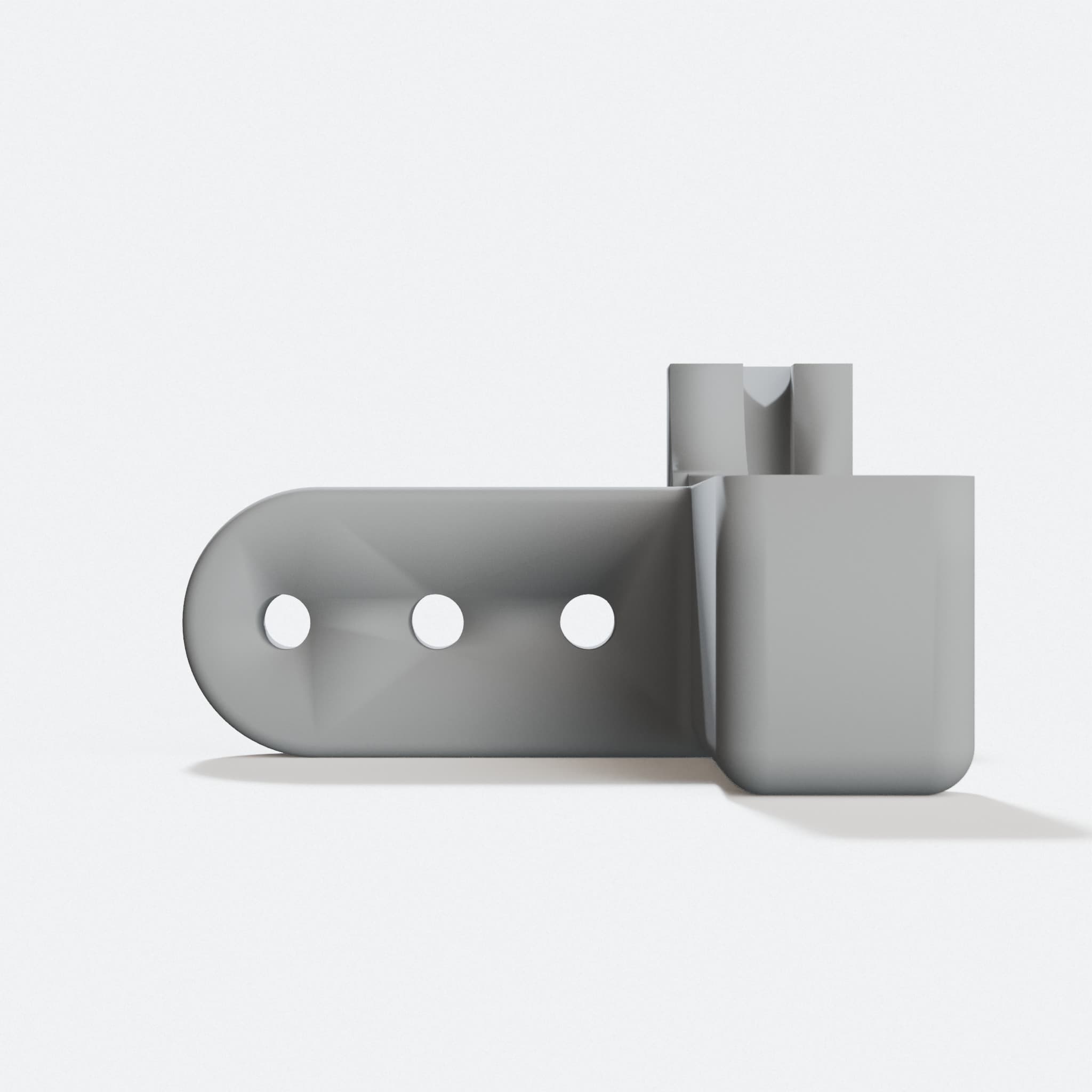

Ender 3 V2 BLTouch/3DTouch Mount - Easy Install Design

Your printer, running the way it should.

52k downloads in the maker community

$10.40

Color: Gray

Printed in the USA when you order.

1.You order it
2.We print it fresh
3.It ships to you

Custom mount designed specifically for Ender 3 V2 X carriage compatibility
V3 design lowered 2mm to prevent nozzle collisions during probing
No complete carriage screw removal required for installation
Probe offset: X-42.00 Y-10.00 for easy firmware configuration
Includes compatible cover protector design for sensor protection

This BLTouch and 3DTouch mount solves a common compatibility issue with the Ender 3 V2's unique X carriage design. Unlike the standard Ender 3 and Ender 3 Pro, the V2 features different screw hole placement that prevents most universal mounts from working properly. This mount is engineered specifically for that configuration.

The V3 iteration improves upon earlier versions by positioning the sensor 2mm lower, giving you additional probing clearance and significantly reducing the risk of nozzle collisions during bed leveling. The design also eliminates the need to fully remove your carriage screw during installation, making setup faster and more straightforward.

With a probe offset of X-42.00 and Y-10.00, firmware configuration is simple and well-documented. The mount works seamlessly with available Ender 3 V2 BLTouch firmware and pairs with optional sensor protector designs for added durability during routine printing operations.
